Controls & Thermostats
OEM and universal replacement parts for all major HVAC brands. Same-day shipping on orders before 3 PM CST.
How to Choose the Right HVAC Control Board or Thermostat
Control boards are the brain of your HVAC system — they manage ignition sequencing, fan timing, safety lockouts, and error codes. When your furnace or AC stops responding, the control board is often the culprit after you've ruled out cheaper parts like capacitors and contactors.
Types of HVAC Control Boards

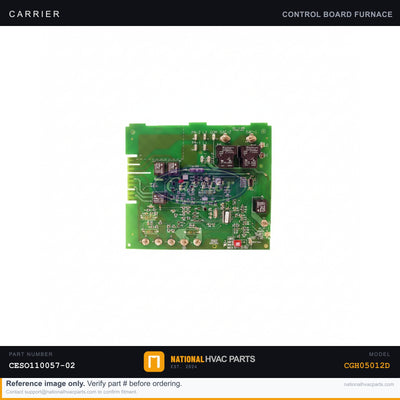

IFC (Integrated Furnace Control) Boards manage the entire ignition sequence — inducer motor, igniter timing, flame sensing, and blower delay. These are the most commonly replaced boards on modern furnaces. Carrier's HK42FZ-series and Goodman's PCBBF112S are high-volume examples.

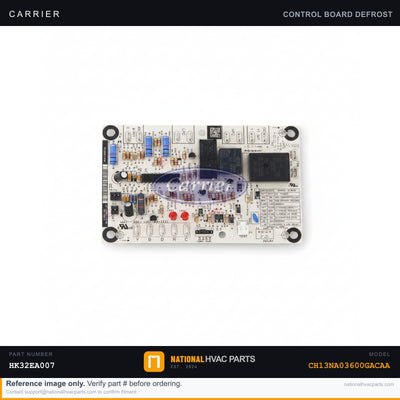

Defrost Control Boards manage heat pump defrost cycles. When your heat pump ices over and won't defrost, this board has usually failed. Look for the board mounted near the outdoor unit's reversing valve.
Fan Timer Boards control blower on/off delay after the burner shuts down. If your blower runs continuously or won't come on, check this board before replacing the motor.
ECM Motor Control Modules are paired with variable-speed blower motors. The module fails more often than the motor itself — always test the module first.
Thermostats
Programmable Thermostats offer daily scheduling for energy savings. WiFi/Smart Thermostats add remote control and learning capabilities. Non-Programmable models are simple on/off with temperature setting — reliable and easy to install.
When replacing a thermostat, check your system's wiring configuration — single-stage (W, Y, G, R) vs two-stage (W1, W2) vs heat pump (O/B terminal). A mismatch can cause the system to run incorrectly.
Signs Your Control Board Needs Replacement
Blinking error codes on the board LED are the first signal. Intermittent operation — furnace works sometimes but not others — often indicates a failing relay on the board. Burn marks or swollen capacitors visible on the board are definitive failure signs. Always write down the error code before replacing — it tells you which circuit failed.
Finding Your Replacement
Control boards are model-specific — the same board rarely fits across different furnace families. Enter your equipment model number above to find the exact board. If you're unsure, ask our technician Mike — he'll cross-reference your model to the correct board.
Frequently Asked Questions
How do I read the error codes on my furnace control board?
Most modern control boards have an LED that blinks a diagnostic code. Count the number of blinks, pause, then count again — the pattern is your error code. Refer to the chart on the board's door panel or our diagnostic tool. Common codes: 1 blink = no ignition, 3 blinks = pressure switch, 4 blinks = high limit tripped.
Can I replace a furnace control board myself?
Yes — it's a moderate DIY job. Turn off power at the breaker, photograph ALL wiring before disconnecting anything, then swap the board. Most boards use plug-in connectors. The job takes 30-60 minutes. The most common mistake is reconnecting wires to the wrong terminals, so photos are essential.
What's the difference between an IFC board and a fan timer board?
An IFC (Integrated Furnace Control) board manages the entire ignition sequence — inducer, igniter, gas valve, flame sensing, and blower delay. A fan timer board only controls blower on/off delay after the burner shuts down. If your furnace won't ignite at all, it's likely the IFC board. If it ignites fine but the blower won't come on or won't shut off, check the fan timer.
Do I need a WiFi thermostat or will a basic one work?
A basic non-programmable thermostat works fine for single-stage heating/cooling. WiFi thermostats add remote control and scheduling but require a C-wire (common wire) for power. If your current thermostat has only 4 wires (R, W, Y, G), you may need to run a new wire or use an add-a-wire kit for WiFi models.
My control board has burn marks — can it be repaired?
No — a board with visible burn marks, swollen capacitors, or melted components should be replaced entirely. Burn marks typically indicate a relay or solder joint failed under load. Attempting to repair a burned board risks intermittent operation and potential safety issues.
