Heat Pump Defrost Controls

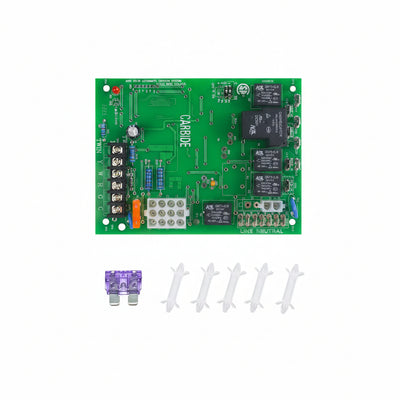

Universal defrost control boards for heat pump systems. Timer and demand defrost options.
How Heat Pump Defrost Controls Work
When temperatures drop below 40°F, frost builds on your heat pump's outdoor coil. The defrost control board monitors coil temperature and run time, then initiates a defrost cycle — temporarily switching the system to cooling mode to melt the ice. When this board fails, your heat pump either never defrosts (coil ices over completely, no heat) or defrosts too often (wasting energy and blowing cold air inside).
Types of Defrost Controls

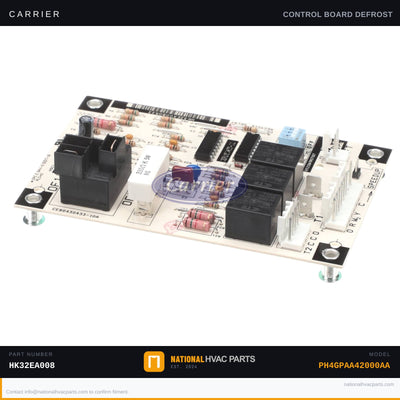

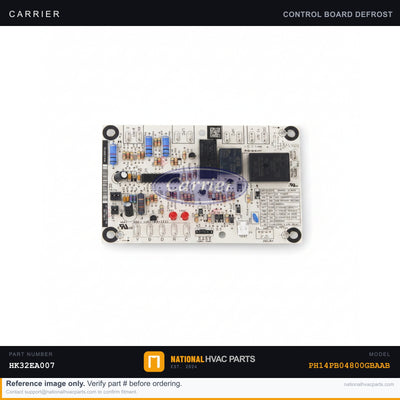

Demand Defrost Boards are the modern standard. They use a coil temperature sensor to detect actual frost buildup and only defrost when needed. Carrier's HK32EA001 and Goodman's PCBDM133S are common examples. These are more efficient than time-based controls because they don't run unnecessary defrost cycles on mild days.
Time-Temperature Defrost Controls initiate defrost at fixed intervals (30, 60, or 90 minutes of compressor run time) and only complete the cycle if the coil temperature is below a set point. Older but still common in many heat pump models. Rheem/Ruud 47-102684-01 is a widely-used example.
Defrost Sensors and Thermistors are the temperature probes that tell the control board when the coil is frosted. When the sensor fails, the board can't detect frost — resulting in a complete ice-over. These are inexpensive ($10-$20) and should be checked before replacing the entire board.
Diagnosing Defrost Problems
Start with the defrost sensor — test it with a multimeter for the correct resistance at ambient temperature. A faulty sensor is the cheapest fix. Next, check the reversing valve solenoid coil — even if the board commands defrost, a dead solenoid coil prevents the system from switching. Finally, test the defrost board itself by jumping the test pins (if equipped) to force a manual defrost cycle. If the system defrosts manually but not automatically, the board or sensor has failed.
Need step-by-step help? Use our free diagnostic tool to walk through heat pump troubleshooting, or ask our tech Mike for part identification.
Related Parts
Defrost issues often involve multiple components. Check reversing valves if the system won't switch modes, control boards if the outdoor unit won't respond, and contactors if the compressor won't engage during defrost.
Frequently Asked Questions
How do I know if my defrost board is bad?
The clearest sign is a completely iced-over outdoor coil that never defrosts. Other symptoms include the heat pump defrosting too frequently (every 10-15 minutes), the system blowing cold air during heating mode, or error codes on the indoor unit's control board indicating a defrost fault. You can test by jumping the board's test pins to force a manual defrost — if the system defrosts manually but not automatically, the board or its sensor has failed.
Can I replace a defrost board myself?
Yes — defrost board replacement is a moderate DIY job. The board is typically mounted inside the outdoor unit's electrical panel. Turn off power at the breaker and disconnect, photograph all wiring before disconnecting, then swap the board. Most boards are plug-and-play with the same connector layout. The job takes 30-60 minutes. However, if the system uses a refrigerant-side defrost sensor that's brazed into the coil, that portion requires a licensed technician.
What's the difference between demand defrost and time-temperature defrost?
Time-temperature boards initiate defrost at fixed intervals (30, 60, or 90 minutes) regardless of whether the coil is actually frosted. Demand defrost boards monitor the coil temperature continuously and only defrost when frost is actually detected. Demand defrost is more efficient — it can save 5-15% on winter heating costs by eliminating unnecessary defrost cycles on mild days.
My heat pump is icing over — is it always the defrost board?
Not always. Check these in order: 1) Defrost sensor/thermistor — test for correct resistance with a multimeter ($10-$20 part). 2) Reversing valve solenoid coil — if the coil is dead, the system can't switch to defrost mode ($30-$60 part). 3) Outdoor fan motor — if it's running during defrost, that prevents the coil from warming up. 4) Defrost control board — replace last after ruling out cheaper parts ($80-$150).
Are defrost boards interchangeable between brands?
Generally no — defrost boards are brand and model-specific because they interface with different sensor types, pin configurations, and timing logic. However, within brand families (Carrier/Bryant/Payne, or Goodman/Amana/Daikin), the boards are often cross-compatible. Always match by your equipment model number to ensure compatibility.
