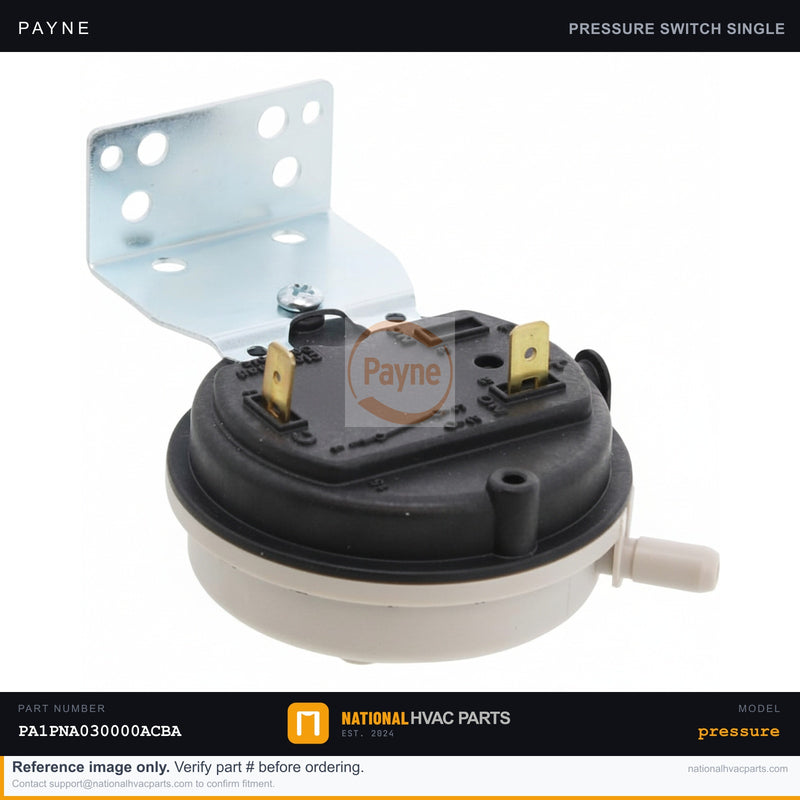

OEM Payne High Pressure Refrigerant Switch for PA1PNA030000ACBA

The pressure switch is a refrigerant safety control that protects the compressor in your Payne PA1PNA030000ACBA system. It continuously monitors system pressure and opens the 24V control circuit the instant pressure climbs too high or drops too low — shutting the compressor down before it can be damaged by a blocked condenser, low charge, or a failed fan. When the switch fails or sticks, you'll notice the outdoor unit short-cycling, tripping out on a fault and refusing to restart, or the compressor not running at all even though the thermostat is calling for cool. A nuisance-tripping switch is a frequent cause of 'my AC blows warm air' service calls. This is an OEM-spec auto-reset switch with factory cut-out and cut-in pressure setpoints matched to this unit's refrigerant and design pressures. The setpoints and electrical rating are calibrated to the original — using a switch with the wrong trip points either nuisance-trips or, worse, fails to protect the compressor. OEM matters: generic pressure switches often carry looser calibration tolerances and lower-rated contacts, so they trip at the wrong pressure or burn out early — defeating the very protection they exist to provide and putting an expensive compressor at risk. Installation difficulty: 2 of 5. Tools needed: an adjustable or open-end wrench, a multimeter for continuity testing, and refrigerant-safe gloves. #1 safety warning: this switch threads into the refrigerant circuit — if it uses a Schrader-style fitting you can swap it without recovering charge, but if not, the system must be recovered by an EPA-certified tech first. Always shut off power at the disconnect and breaker before servicing. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Payne model PA1PNA030000ACBA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
