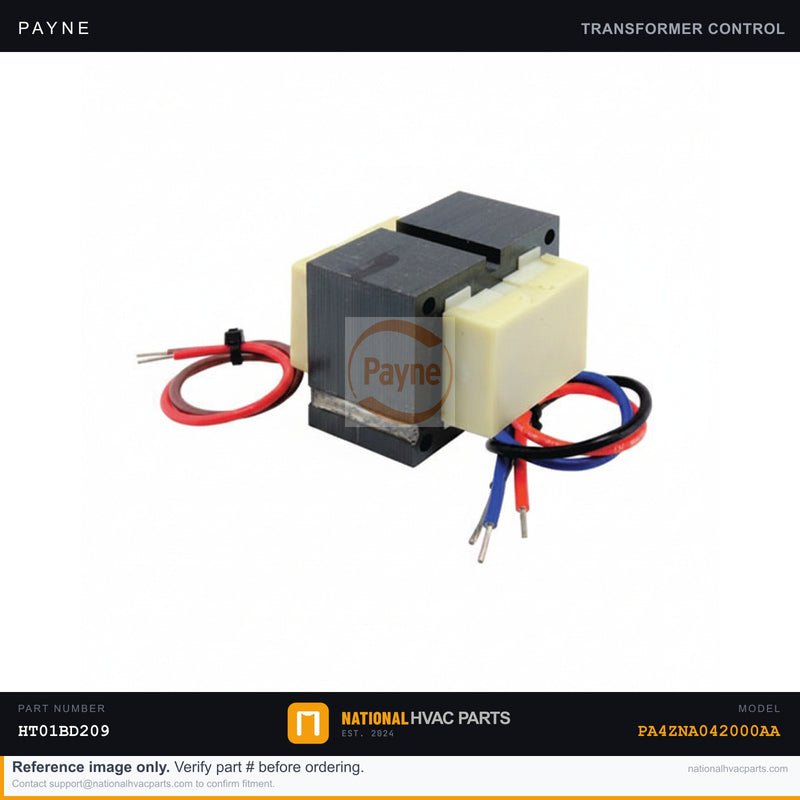

OEM Payne Transformer 40VA 120V/24V for PA4ZNA042000AA
Payne

OEM Payne Transformer 40VA 120V/24V for PA4ZNA042000AA

SKU: PAYNE-PA4ZNA042000AA-TRANSFORMER-HT01BD209 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne 40VA Control Transformer for Model PA4ZNA042000AA

This OEM replacement transformer (part# HT01BD209) is the factory-specified control circuit transformer for the Payne PA4ZNA042000AA split-system air conditioner. The transformer steps down 120V line voltage to the 24V signal voltage required to power the thermostat, contactor coil, and control board. When the transformer fails, the entire control circuit goes dead — the thermostat displays nothing, the system refuses all commands, and no components respond. If you've already confirmed your thermostat and control board are intact, a failed transformer is the most common culprit.

  • Specs: 40VA rated | 120V primary / 24V secondary | Factory-matched winding tolerance | Compact footprint for drop-in replacement | OEM part number HT01BD209
  • OEM vs Generic: This is a genuine OEM Payne/ICP transformer wound to exact factory VA and voltage specs. Generic transformers are frequently under-rated in practice, causing nuisance trips, overheating, and premature failure — especially when multiple 24V accessories are on the circuit.
  • Install difficulty: 2/5 — Shut off power at the breaker and disconnect the furnace switch before starting. Tools needed: flathead and Phillips screwdrivers, wire stripper, multimeter. Photograph all wiring connections before removal. Verify 0V at primary terminals before touching any wires.
  • Warranty: 1-year OEM factory warranty against defects. Orders placed before cutoff ship the same business day from our climate-controlled warehouse.

Compatibility: Designed specifically for the Payne PA4ZNA042000AA split-system condenser. Always verify your existing transformer's VA rating and primary/secondary voltages on the unit's data plate or wiring diagram before ordering. Our parts specialists are available to confirm fitment — contact us before you order if you have any questions. In stock and ships today.
