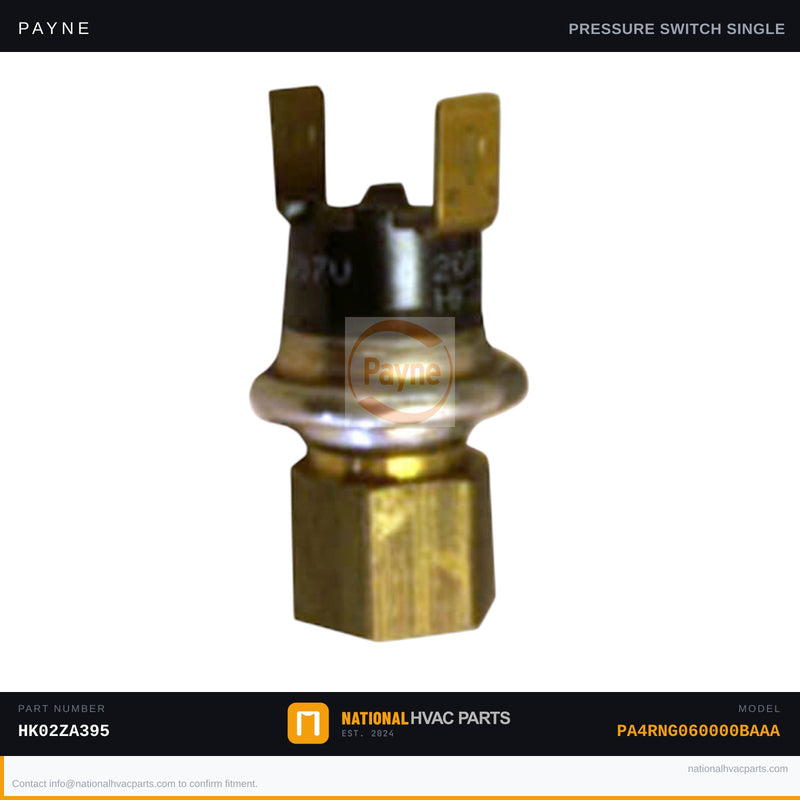

OEM Payne Low Pressure Limit Switch for Heat Pump PA4RNG060000BAAA

The pressure switch is the safety device that monitors refrigerant pressure in your Payne PA4RNG060000BAAA and opens the 24V control circuit if pressure leaves the safe operating range — protecting the compressor from running under a loss of charge or against dangerously high head pressure. When it fails or its setpoints drift, the unit won't start or locks out for no obvious reason, short-cycles on and off, delivers no cooling despite a good charge, or trips intermittently on hot days when head pressure rises. This switch is defined by its cut-out and cut-in PSI setpoints (a low-pressure switch typically opens around 20 psi and recloses near 45 psi), its reset type (auto vs. manual), the connection/thread style, and whether it is normally closed. Match the exact PSI rating to your model — a switch with the wrong setpoints either fails to protect the compressor or causes nuisance lockouts. OEM matters because the factory switch is calibrated to this system's design pressures. Generic switches commonly drift out of calibration or ship with approximate setpoints, so they either trip needlessly or, worse, allow the compressor to run in a condition it should have shut down for. Install difficulty: 2/5. Tools: an adjustable wrench and a multimeter for continuity testing. #1 safety warning: this switch sits on a pressurized refrigerant line — if it does NOT thread onto a self-sealing Schrader fitting, the system must be recovered by an EPA-certified technician before removal. Always kill power at the breaker first, and never vent refrigerant to atmosphere. Ships same business day from our stocked warehouse on orders before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Payne model PA4RNG060000BAAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
