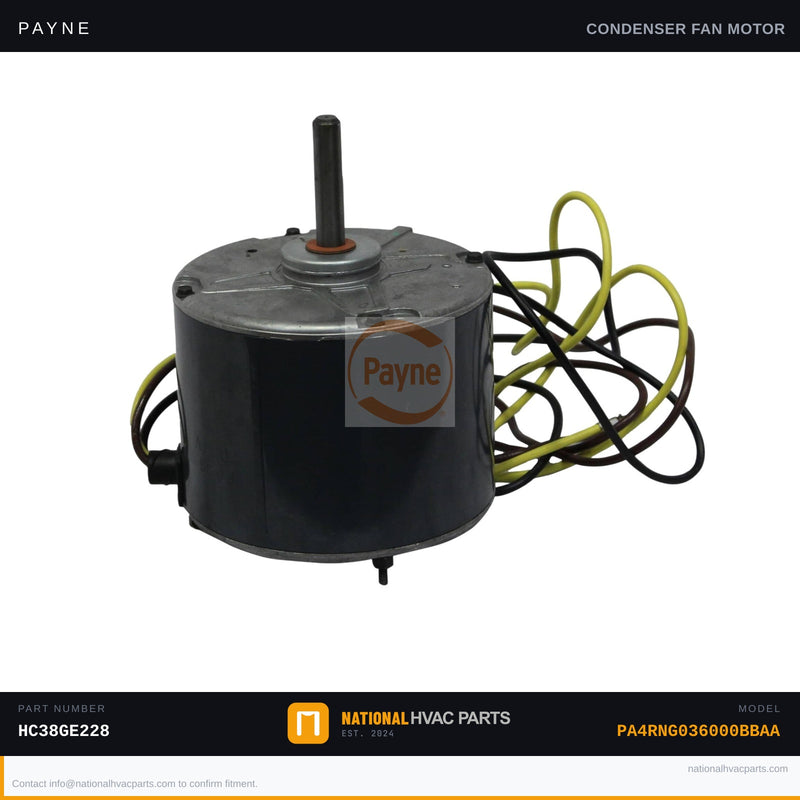

OEM Payne Condenser Fan Motor Replacement for PA4RNG036000BBAA

The condenser fan motor is the outdoor motor that spins the top fan blade, pulling air across the condenser coil so the system can reject the heat your compressor pumps outside. When it weakens or fails, the blade may hum but not turn, start slowly, or stop intermittently. Homeowners typically notice warm air from the registers, an outdoor unit that runs hot to the touch, short-cycling on the compressor's high-pressure limit, or a breaker that trips after the system has run a while. A seized or open-winding motor left in service drives head pressure up and can overheat the compressor. This OEM Payne motor is matched to the original horsepower, RPM, rotation, and frame for the PA4RNG036000BBAA condenser. It is a 208/230V PSC (permanent split capacitor) design with sealed bearings, a 1/2-inch shaft, and factory-specified amp draw, so airflow across the coil stays exactly where the engineers set it. A separate run capacitor is required to start and run the motor. Why OEM matters here: a generic motor with a mismatched HP or RPM moves the wrong volume of air, raising head pressure and shortening compressor life. Aftermarket windings are often rated for lower temperatures with thinner insulation, so they fail sooner in the hot environment on top of a condenser. The OEM unit holds the original thermal rating and balance. Install difficulty: 4 of 5. Tools: 1/4-inch and 5/16-inch nut drivers, a multimeter, and usually a fresh matching run capacitor. #1 safety warning: shut off the disconnect AND the breaker, then discharge the run capacitor with an insulated resistor before touching any motor leads — a charged capacitor can deliver a dangerous shock. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Payne model PA4RNG036000BBAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
