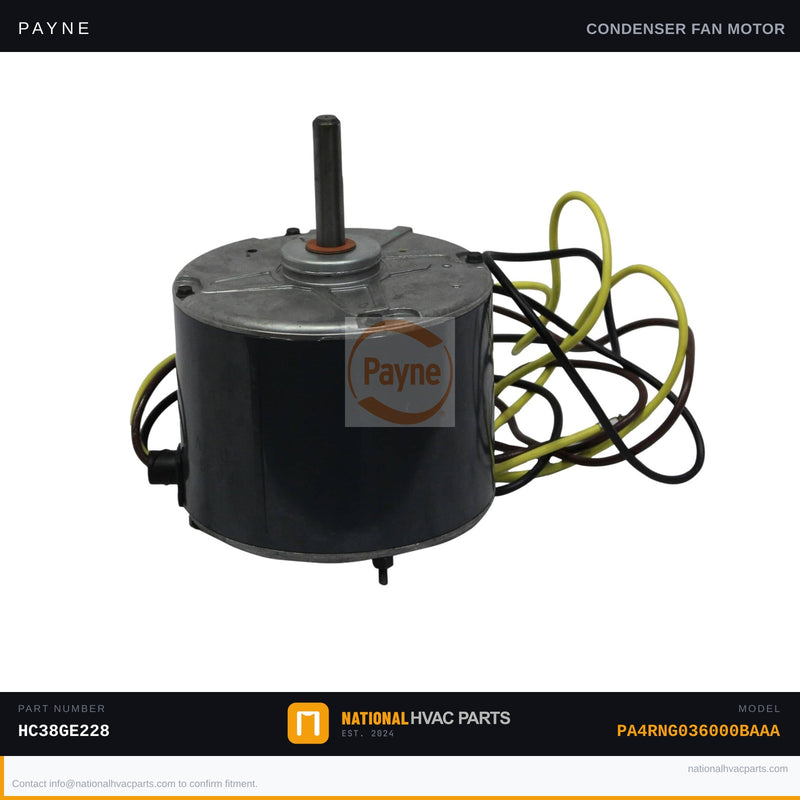

OEM Payne Condenser Fan Motor 1/4-1/2 HP for PA4RNG036000BAAA
Payne

OEM Payne Condenser Fan Motor 1/4-1/2 HP for PA4RNG036000BAAA

SKU: PAYNE-PA4RNG036000BAAA-FAN_MOTOR-HC38GE228 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor for Model PA4RNG036000BAAA

This OEM condenser fan motor is the factory-specified replacement for the Payne PA4RNG036000BAAA 3-ton split-system air conditioner. The condenser fan motor drives the fan blade that expels heat from the outdoor unit's refrigerant coil. When this motor fails, the condenser loses the ability to reject heat — causing the system to overheat, trip the high-pressure limit, and shut down, leaving you without cooling. Common failure symptoms include the outdoor fan failing to spin, a buzzing noise at startup, visible motor overheating, or repeated nuisance tripping of the high-pressure cutout.

  • Specs: Replaces OEM part numbers HC38GE228 and HC37GE228 | Rated for 1/4–1/2 HP operation | Factory-matched RPM, rotation direction, and shaft diameter for direct drop-in replacement | 208–230V single-phase
  • OEM vs Generic: OEM motors are wound to exact factory tolerances for amperage draw, RPM, and thermal protection rating. Aftermarket motors may deviate in rotation direction or shaft diameter, requiring modification and voiding system warranties.
  • Install difficulty: 3/5 — Disconnect power and capacitor before removal. Tools needed: 1/4" and 5/16" nut drivers, wire stripper, multimeter, and blade puller. Note fan blade pitch and orientation before disassembly. Always match wiring colors to original configuration.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Ships same business day from our climate-controlled warehouse.

Compatibility: Designed for the Payne PA4RNG036000BAAA 3-ton R-410A split-system condenser. Verify HP, voltage, and shaft diameter against your unit's data plate before ordering. Cross-references OEM part numbers HC38GE228 and HC37GE228. Our fitment team is available to confirm compatibility before you buy — order with confidence and we'll ship today.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA4RNG036000BAAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA4RNG036000BAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA4RNG036000BAAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
