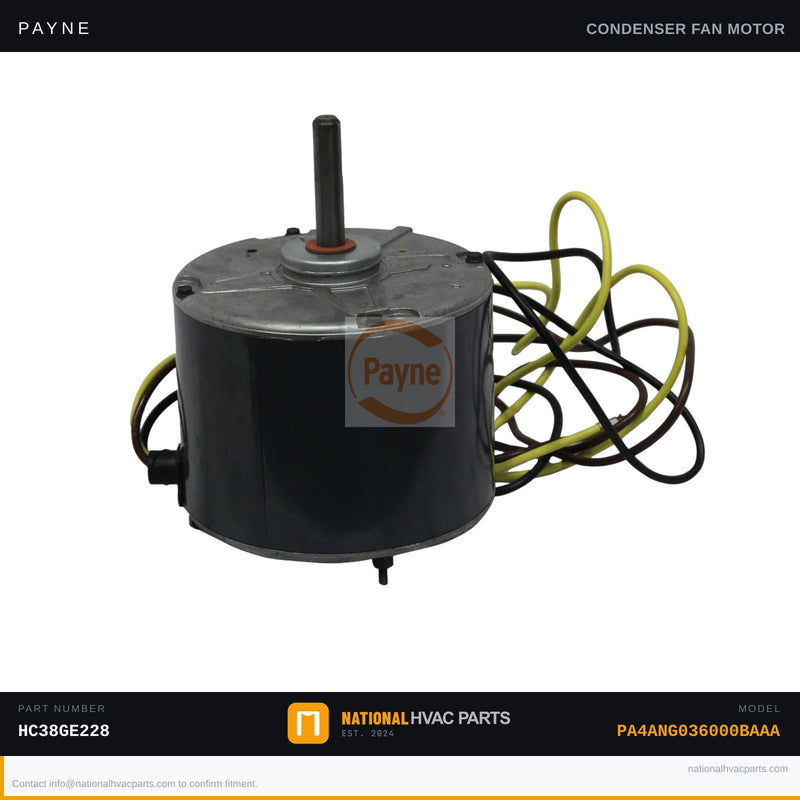

OEM Payne Condenser Fan Motor 1/4 HP for PA4ANG036000BAAA
Payne

OEM Payne Condenser Fan Motor 1/4 HP for PA4ANG036000BAAA

SKU: PAYNE-PA4ANG036000BAAA-FAN_MOTOR-HC38GE228 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor for Model PA4ANG036000BAAA

This OEM condenser fan motor (part numbers HC38GE228 and HC37GE228) is the factory-specified replacement for the Payne PA4ANG036000BAAA 3-ton split-system air conditioner. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to reject heat from the refrigerant. When this motor fails, the system will overheat and trip the high-pressure limit, leaving you with an outdoor unit that runs briefly then shuts down — or doesn't start at all. A failed bearing may also produce a loud grinding or squealing noise before complete failure.

  • Specs: 1/4 HP | 208-230V single-phase | 1,075 RPM | Permanent split capacitor (PSC) design | Shaft diameter 1/2" | Rotation: counterclockwise (CCW) when viewed from shaft end — verify against your data plate before ordering
  • OEM vs Generic: OEM motors (HC38GE228 / HC37GE228) are wound to factory amperage and insulation class specs, ensuring proper airflow across the Payne PA4ANG036000BAAA coil geometry. Generic motors frequently carry looser tolerances on RPM and amp draw, which can shorten compressor life by reducing condenser heat rejection efficiency.
  • Install difficulty: 3/5 — Disconnect power and lockout/tagout before beginning. Tools needed: 5/16" and 3/8" nut drivers, multimeter, blade puller (recommended), and a capacitor discharge tool. Note wiring connections and blade pitch before removal. Always match shaft length and rotation to the original motor.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Orders placed before 3 PM EST ship same business day from our climate-controlled parts warehouse.

Compatibility: Designed for the Payne PA4ANG036000BAAA 3-ton split-system condenser. Cross-references OEM part numbers HC38GE228 and HC37GE228. Always verify horsepower, voltage, RPM, rotation direction, and shaft diameter from your unit's data plate before ordering. Our parts specialists are available to confirm fitment — contact us before you buy if you have any questions.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA4ANG036000BAAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA4ANG036000BAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA4ANG036000BAAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
