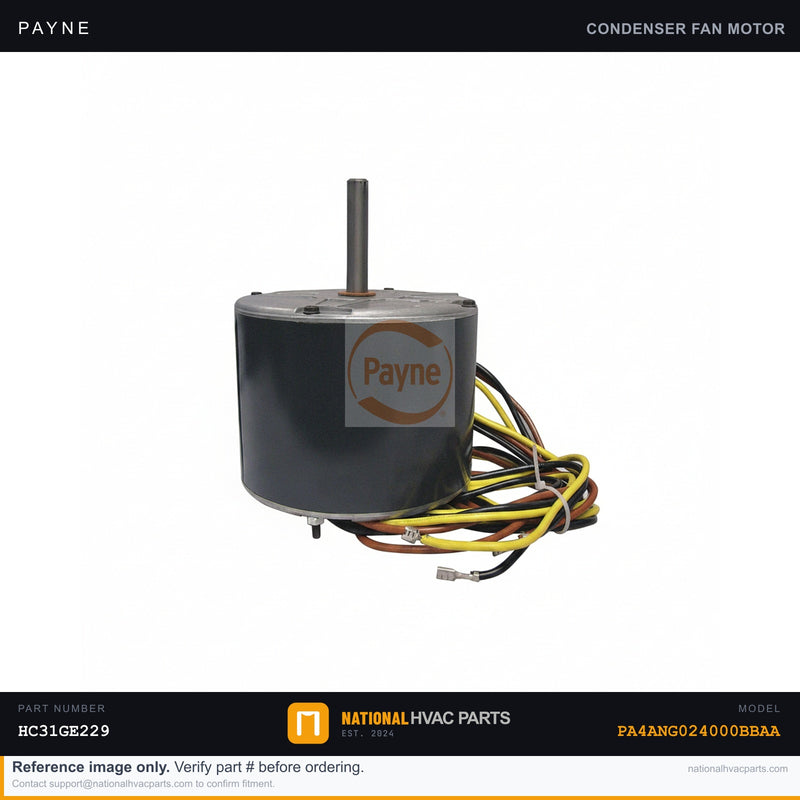

OEM Payne Condenser Fan Motor 1/4 HP for PA4ANG024000BBAA
Payne

OEM Payne Condenser Fan Motor 1/4 HP for PA4ANG024000BBAA

SKU: PAYNE-PA4ANG024000BBAA-FAN_MOTOR-HC31GE229 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor HC31GE229 for Model PA4ANG024000BBAA

This is the factory-specified OEM condenser fan motor (part number HC31GE229) for the Payne PA4ANG024000BBAA split-system air conditioner. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, rejecting heat from the refrigerant and keeping your system running efficiently. When this motor fails, the compressor overheats and trips on thermal protection, causing the unit to shut down mid-cycle or stop cooling altogether. Common symptoms include a humming outdoor unit with a stationary fan blade, intermittent shutdowns on hot days, or a burned smell near the condenser cabinet.

  • Specs: OEM Part HC31GE229 | 1/4 HP | Factory-matched RPM, rotation direction, and shaft diameter | 208/230V single-phase | Permanently lubricated sleeve bearings | Designed for outdoor condenser duty
  • OEM vs Generic: This OEM motor is wound and balanced to Payne's exact factory tolerances, ensuring correct airflow, amp draw, and thermal protection settings. Generic motors frequently differ in rotation direction or RPM, stressing the compressor and voiding equipment warranties.
  • Install difficulty: 3/5 — Disconnect and lock out power before beginning. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter, and shaft puller for fan blade removal. Photograph all wiring and blade pitch before disassembly. Verify rotation direction matches the original unit before powering on.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Orders placed before cutoff ship same business day from our climate-controlled warehouse.

Compatibility: Engineered specifically for the Payne PA4ANG024000BBAA 2-ton split-system air conditioner. Always verify horsepower, voltage, RPM, shaft diameter, and rotation direction against your unit's data plate before ordering. Our fitment team is available to confirm compatibility — just reach out before you buy. In stock and ready to ship today.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA4ANG024000BBAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA4ANG024000BBAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA4ANG024000BBAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
