OEM Payne Transformer 40VA 120V-24V for PA3ZNB048000AC
Payne

OEM Payne Transformer 40VA 120V-24V for PA3ZNB048000AC

SKU: PAYNE-PA3ZNB048000AC-TRANSFORMER-HT01BD209 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

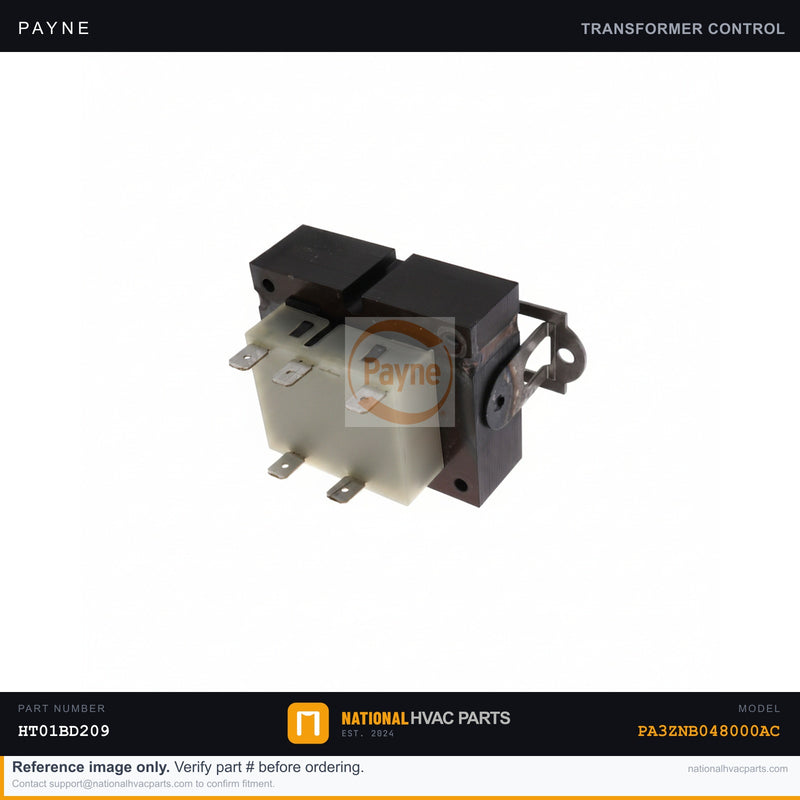

OEM Payne Transformer 40VA 120V/24V for Model PA3ZNB048000AC

This is the factory OEM replacement transformer (part# HT01BD209) for the Payne PA3ZNB048000AC packaged air conditioning unit. The control transformer steps down line voltage from 120V to 24V to power the low-voltage control circuit — including the thermostat, contactor coil, and control board. When the transformer fails, the entire control circuit goes dead: the thermostat goes blank, the system won't respond to any calls for cooling or heating, and nothing operates. A failed transformer is often caused by a shorted control wire, a failed component drawing excess current, or simply age and heat fatigue.

  • Specs: Input 120V | Output 24V | 40VA rating | OEM part number HT01BD209 | Direct factory-matched replacement for Payne PA3ZNB048000AC
  • OEM vs Generic: This OEM transformer is wound to exact factory VA and voltage specifications. Generic units may run under-rated VA loads, causing premature burnout — especially in multi-stage or communicating systems that draw higher control-circuit current.
  • Install Difficulty: 2/5 — Shut off all power at the disconnect and breaker before beginning. Tools needed: flathead and Phillips screwdrivers, wire stripper, multimeter. Label or photograph all low-voltage wiring connections before disconnecting. Verify incoming line voltage before energizing.
  • Warranty: 1-year OEM factory warranty. In stock and ships same business day from our warehouse.

Compatibility: Designed specifically for the Payne PA3ZNB048000AC 4-ton packaged unit. Always verify transformer VA rating and primary/secondary voltages on your unit's wiring diagram before ordering. Our parts specialists are available to confirm fitment — order with confidence today.
