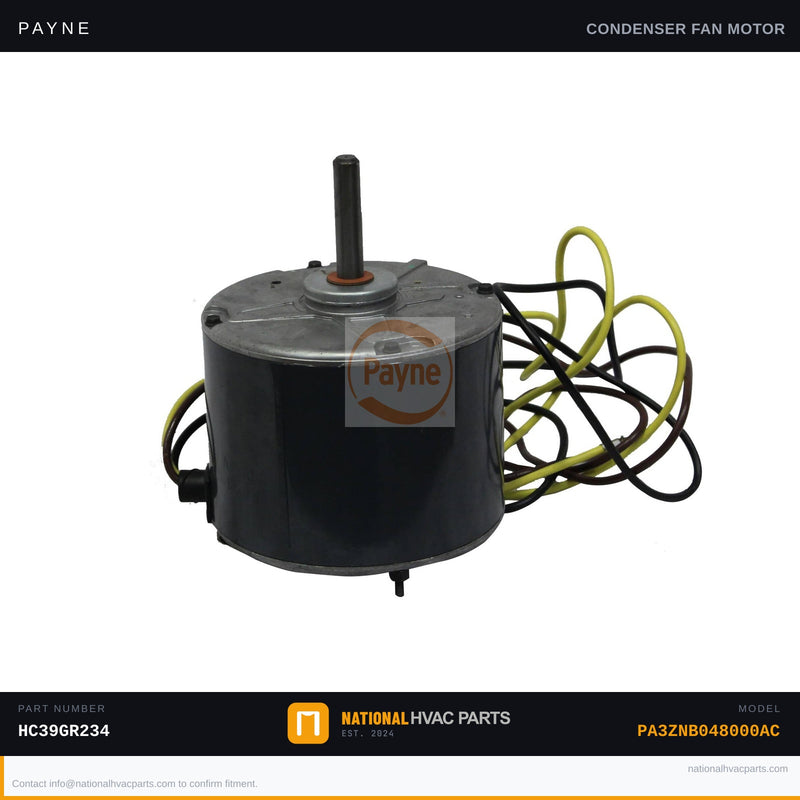

OEM Payne Condenser Fan Motor HC39GR234 for Model PA3ZNB048000AC

This OEM condenser fan motor (part number HC39GR234) is the factory-specified replacement for the Payne PA3ZNB048000AC 4-ton split-system air conditioner. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to reject heat from the refrigerant. When this motor fails, the condenser coil overheats, refrigerant pressure spikes, and the system trips on high-pressure lockout — leaving you with a warm house and a compressor at risk of permanent damage. Common symptoms include the outdoor fan not spinning, the unit shutting off after a few minutes of operation, or a burning smell from the condenser cabinet.

• Specs: OEM part HC39GR234 | Factory-matched HP, RPM, and rotation direction | Correct shaft diameter for Payne PA3ZNB048000AC fan blade | 48-frame condenser motor rated for outdoor exposure
• OEM vs Generic: This factory OEM motor is wound and balanced to exact Payne specifications, ensuring proper airflow, correct amp draw, and a service life that matches the original design. Generic motors frequently ship with incorrect rotation, mismatched RPM, or undersized shaft diameters — causing blade vibration, reduced efficiency, and repeat failures.
• Install difficulty: 3/5 — Disconnect power at the breaker and verify zero voltage before opening the cabinet. Tools needed: nut driver set, wire stripper, multimeter, and blade puller (recommended). Photograph all wiring connections before removal. Match rotation direction and blade pitch before final assembly.
• Warranty: 1-year OEM factory warranty against defects. In-stock units ship the same business day from our climate-controlled warehouse.

Compatibility: Engineered specifically for the Payne PA3ZNB048000AC 4-ton split-system condenser. Always cross-reference the HP, RPM, voltage, and shaft diameter on your existing motor's nameplate before ordering to confirm fitment. Our parts specialists are available to verify compatibility before you buy — reach out before placing your order and we'll confirm the right part ships the first time.
