OEM Payne Condenser Fan Motor HC39GR234 for PA3ZNA042000AA
Payne

OEM Payne Condenser Fan Motor HC39GR234 for PA3ZNA042000AA

SKU: PAYNE-PA3ZNA042000AA-FAN_MOTOR-HC39GR234 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

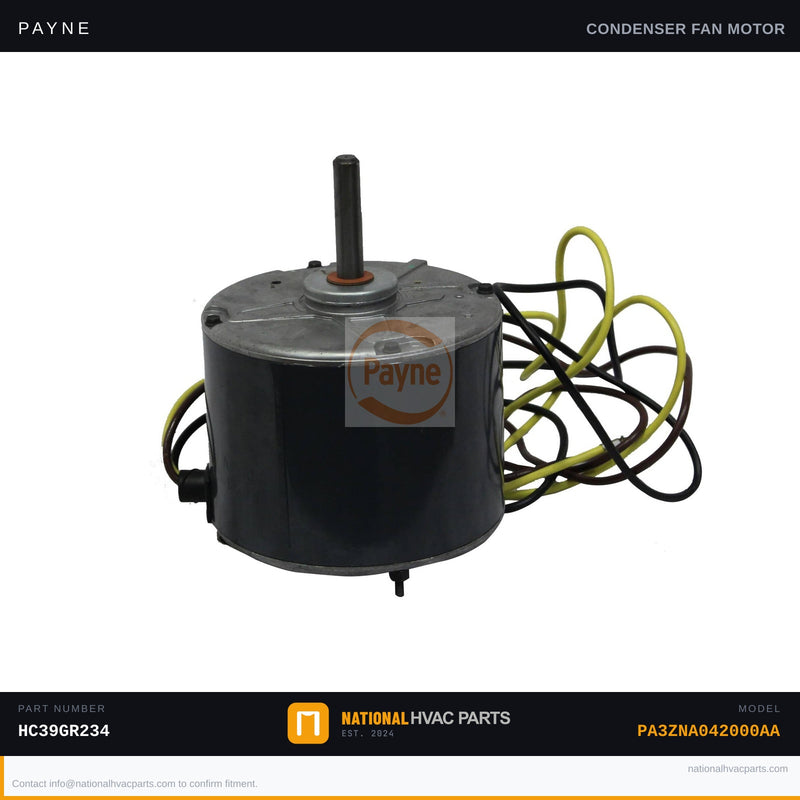

OEM Payne Condenser Fan Motor HC39GR234 for Model PA3ZNA042000AA

This is the factory OEM condenser fan motor (part number HC39GR234) for the Payne PA3ZNA042000AA split-system air conditioner. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, dissipating heat so the refrigerant cycle can continue efficiently. When this motor fails, the outdoor unit will run briefly then shut down on high-pressure lockout, or the compressor will overheat — leaving you with a warm house and a hard-starting system. Common failure symptoms include the fan blade not spinning, loud grinding or squealing from the outdoor unit, or the system tripping the high-pressure safety cutout repeatedly.

  • Specs: OEM part HC39GR234 | Factory-matched HP, RPM, and rotation direction | Correct shaft diameter and mounting configuration for Payne PA3ZNA042000AA | 440V capacitor-rated windings | Pre-determined rotation (verify CCW or CW on data plate before ordering)
  • OEM vs Generic: This OEM motor is wound and balanced to exact factory tolerances for the PA3ZNA042000AA. Aftermarket motors frequently run off-speed RPMs and use lower-grade bearings, shortening service life in high-ambient Southern climates where this unit is commonly installed.
  • Install Difficulty: 3/5 — Requires disconnecting power at the disconnect box and control board. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter, capacitor discharge tool. Always verify capacitor MFD rating matches new motor nameplate before powering on. Photo-document all wiring before removal.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Orders placed by 3 PM EST ship same business day from our climate-controlled warehouse.

Compatibility: Engineered specifically for the Payne PA3ZNA042000AA condenser. Always cross-reference the motor nameplate on your existing unit — confirm horsepower, RPM, rotation, and shaft diameter match before installation. If you need help verifying fitment, our HVAC parts specialists are standing by. In stock and ready to ship today.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA3ZNA042000AA?
Yes. This is the factory-specified OEM fan motor for the Payne PA3ZNA042000AA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA3ZNA042000AA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
