OEM Payne Transformer 40VA 120V/24V for PA3GNAA36000AA
Payne

OEM Payne Transformer 40VA 120V/24V for PA3GNAA36000AA

SKU: PAYNE-PA3GNAA36000AA-TRANSFORMER-HT01BD209 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

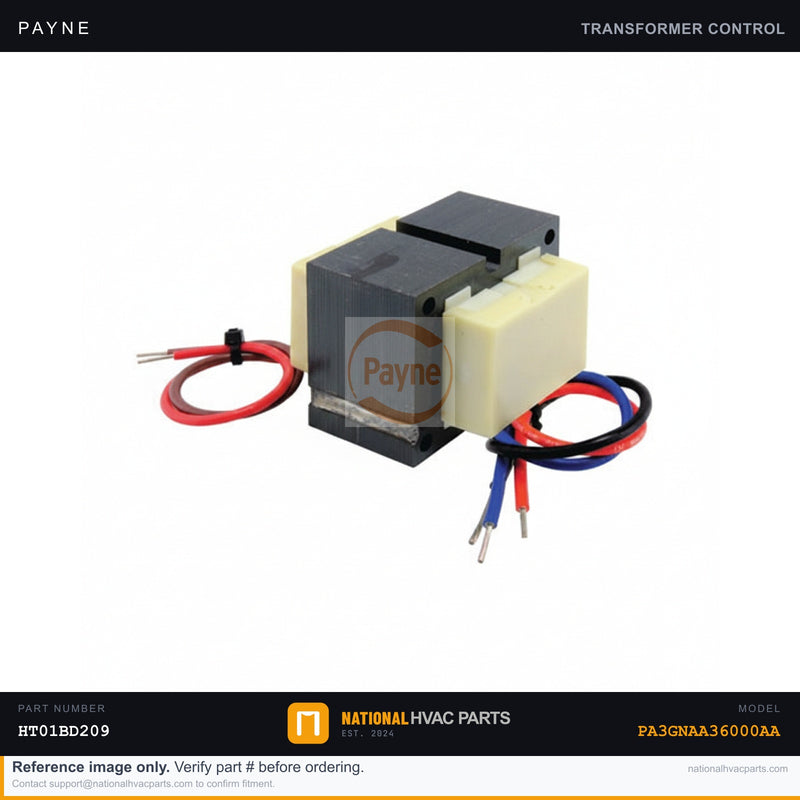

OEM Payne 40VA Control Transformer for Model PA3GNAA36000AA

This is the factory OEM replacement transformer (part# HT01BD209) for the Payne PA3GNAA36000AA air conditioner. The transformer steps down 120V line voltage to the 24V signal required by your thermostat, contactor coil, and control board. When this component fails, the entire control circuit goes dead — your thermostat will display a blank screen or show no response, and the system will not heat, cool, or respond to any input. It is often the first component to inspect when a system goes completely silent.

  • Specs: 40VA rated | 120V primary / 24V secondary | OEM part number HT01BD209 | Factory-matched output for Payne control circuits
  • OEM vs Generic: This OEM transformer is wound to exact factory VA and voltage tolerances. Undersized or off-tolerance generic transformers can cause erratic thermostat behavior, nuisance tripping of the fuse on the control board, or premature failure of downstream components.
  • Install Difficulty: 2/5 — Disconnect power at the breaker and confirm voltage is absent before handling. Tools needed: flathead and Phillips screwdrivers, needle-nose pliers, multimeter. Label or photograph all wiring connections before removal.
  • Warranty: 1-year OEM factory warranty. In stock and ships same business day from our warehouse.

Compatibility: Designed as the direct OEM replacement for the Payne PA3GNAA36000AA (3-ton split-system condenser). Verify your existing transformer's VA rating and primary/secondary voltage on the component label before ordering to ensure proper fitment. Have questions about compatibility? Our HVAC parts specialists are available to confirm the right fit before you buy.
