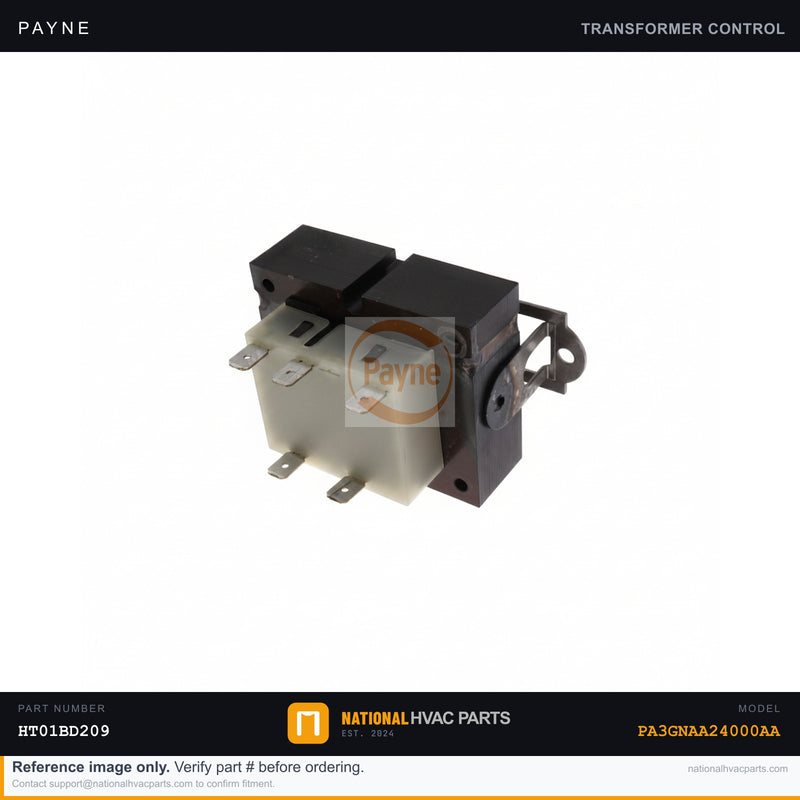

OEM Payne Transformer 40VA 120V/24V for PA3GNAA24000AA
Payne

OEM Payne Transformer 40VA 120V/24V for PA3GNAA24000AA

SKU: PAYNE-PA3GNAA24000AA-TRANSFORMER-HT01BD209 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Control Transformer 40VA for Model PA3GNAA24000AA

This OEM replacement transformer (part number HT01BD209) is the factory-specified control circuit transformer for the Payne PA3GNAA24000AA air conditioner. The transformer steps line voltage (120V) down to 24V to power the control board, thermostat, contactor coil, and all low-voltage safety circuits. When the transformer fails, absolutely nothing in the system responds — the thermostat goes blank, the unit won't call for cooling or heating, and there is zero control circuit activity. It is often the first component to check when a system appears completely dead with no fault codes.

  • Specs: 40VA rating | 120V primary / 24V secondary | OEM part number HT01BD209 | Factory-matched output for stable low-voltage control circuit operation
  • OEM vs Generic: This is the genuine factory OEM transformer, ensuring exact VA rating, terminal configuration, and mounting dimensions. Generic transformers may run undersized VA ratings, causing voltage sag that leads to nuisance lockouts, contactor chatter, and premature control board failure.
  • Install difficulty: 2/5 — Always disconnect power at the breaker before beginning. Tools needed: flathead and Phillips screwdrivers, needle-nose pliers, multimeter (to confirm 24V output after install). Label or photograph all low-voltage wiring before disconnecting. Most installs complete in under 30 minutes.
  • Warranty: 1-year OEM factory warranty against defects. Orders placed before cutoff ship same business day from our climate-controlled warehouse.

Compatibility: Designed specifically for the Payne PA3GNAA24000AA split-system air conditioner. Always verify your existing transformer's VA rating and primary/secondary voltages on the data plate or wiring diagram before ordering. Our HVAC parts team is available to confirm fitment — reach out before you order if you have any questions.
