OEM Payne Condenser Fan Motor 1/4HP for PA3ANA048000BAAA
Payne

OEM Payne Condenser Fan Motor 1/4HP for PA3ANA048000BAAA

SKU: PAYNE-PA3ANA048000BAAA-FAN_MOTOR-HC39GE226 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

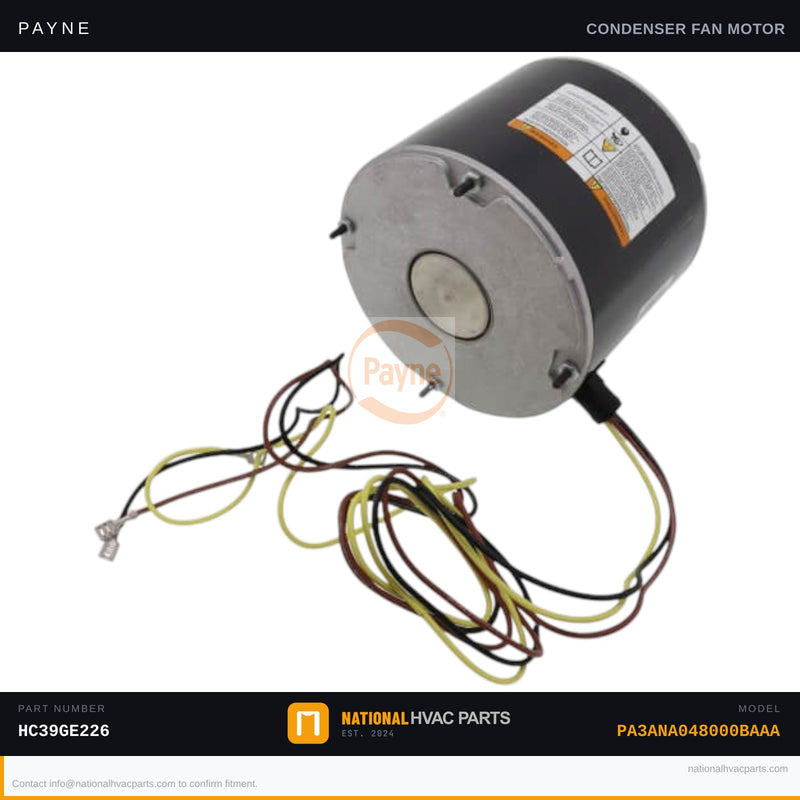

OEM Payne Condenser Fan Motor HC39GE226 for Model PA3ANA048000BAAA

This OEM condenser fan motor (part number HC39GE226) is the factory-specified replacement for the Payne PA3ANA048000BAAA 4-ton split-system air conditioner. The condenser fan motor drives the outdoor fan blade to expel heat from the refrigerant through the condenser coil. When it fails, the outdoor unit overheats, triggers the high-pressure limit, and shuts the system down — leaving you with warm air or no cooling at all. You may also notice the fan blade spinning slowly, humming without movement, or not running at all while the compressor attempts to operate.

  • Specs: Replaces OEM part HC39GE226 | Rated for 4-ton (048) condenser application | Factory-matched HP, RPM, rotation direction, and 1/2" shaft diameter | 208-230V single-phase | Permanently lubricated sleeve bearings for long service life
  • OEM vs Generic: This OEM motor is wound and balanced to exact factory specifications, ensuring correct airflow across the condenser coil. Generic motors frequently deviate in RPM and rotation, causing reduced efficiency, premature compressor failure, and voided equipment warranties.
  • Install Difficulty: 3/5 — Disconnect and lock out power before beginning. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter, wire strippers. Photograph all wiring connections and fan blade orientation before removal. Verify blade pitch and set-screw torque on reassembly.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. In-stock units ship the same business day from our warehouse.

Compatibility: Designed specifically for the Payne PA3ANA048000BAAA 4-ton split-system condenser. Always confirm motor HP, voltage, RPM, and shaft diameter against your unit's data plate before ordering. Our HVAC parts specialists are available to verify fitment — contact us before you order if you have any questions. Order today and your part ships same business day.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA3ANA048000BAAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA3ANA048000BAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA3ANA048000BAAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
