OEM Payne Condenser Fan Motor 1/4 HP for PA3ANA024000BAAA
Payne

OEM Payne Condenser Fan Motor 1/4 HP for PA3ANA024000BAAA

SKU: PAYNE-PA3ANA024000BAAA-FAN_MOTOR-HC34GE239 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

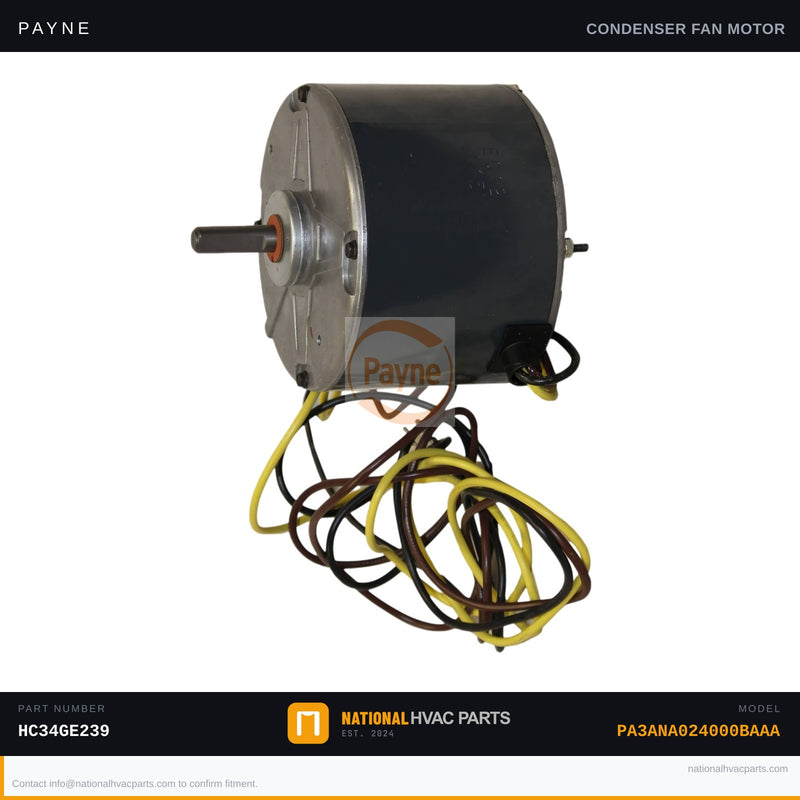

OEM Payne Condenser Fan Motor HC34GE239 for Model PA3ANA024000BAAA

This is the factory-specified OEM condenser fan motor (part number HC34GE239) for the Payne PA3ANA024000BAAA split-system air conditioner. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to reject heat from the refrigerant. When this motor fails, airflow stops, head pressure spikes, and the system either trips on high-pressure lockout or runs continuously without cooling your home. Common failure symptoms include a humming outdoor unit with no fan spin, intermittent shutdowns on hot days, or a seized motor that's hot to the touch.

  • Specs: OEM Part HC34GE239 | Factory-matched HP, RPM, rotation direction, and shaft diameter for the PA3ANA024000BAAA | 208/230V single-phase | Thermally protected | Pre-lubricated sleeve or ball bearings per factory spec
  • OEM vs Generic: This OEM motor is wound and balanced to Payne's exact factory tolerances, ensuring correct airflow CFM and amperage draw. Generic motors may vary in rotation direction, shaft length, or mounting configuration — any mismatch risks blade contact, vibration, or premature failure.
  • Install Difficulty: 3/5 — Requires disconnecting power at the breaker and capacitor discharge before beginning. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter, and blade puller (recommended). Note the blade pitch and depth before removal. Always confirm rotation direction matches original.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. In-stock units ship same business day from our climate-controlled warehouse.

Compatibility: Engineered specifically for the Payne PA3ANA024000BAAA 2-ton split-system condenser. Verify voltage, HP, and rotation direction against your unit's data plate before ordering. Our HVAC parts specialists are available to confirm fitment — don't guess on a motor swap. Order today and get back up and running fast.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA3ANA024000BAAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA3ANA024000BAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA3ANA024000BAAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
