OEM Payne Dual Run & Start Capacitor Kit for PA3ANA024000BAAA
Payne

OEM Payne Dual Run & Start Capacitor Kit for PA3ANA024000BAAA

SKU: PAYNE-PA3ANA024000BAAA-CAPACITOR-P291-3553RS Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Dual Run Capacitor & Start Capacitor Kit for Model PA3ANA024000BAAA

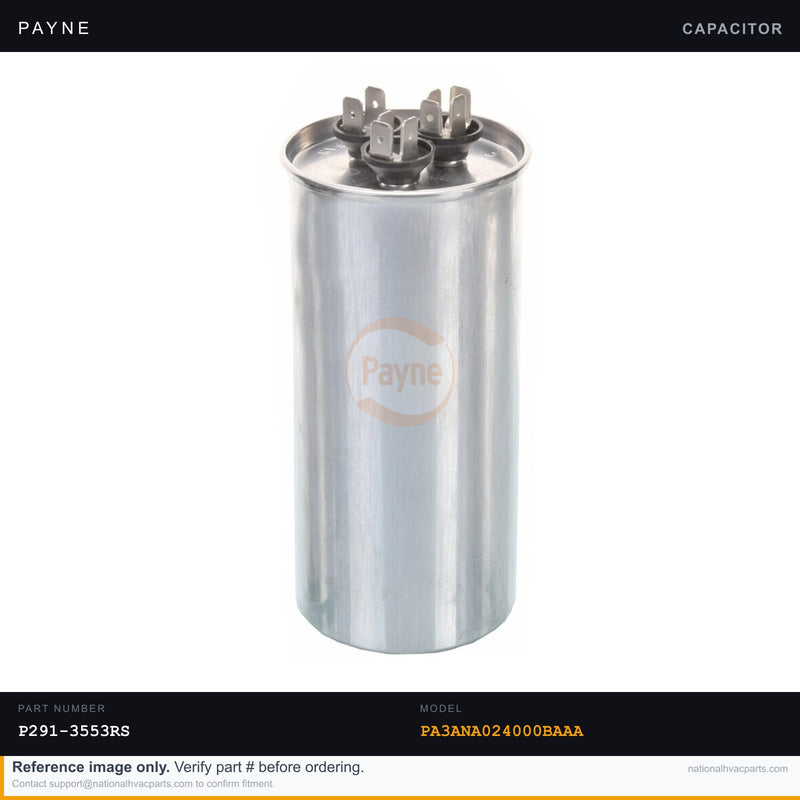

This OEM-matched capacitor set includes both the dual run capacitor (P291-3553RS) and the start capacitor (P281-1766) factory-specified for the Payne PA3ANA024000BAAA split-system air conditioner. The dual run capacitor continuously supports both the compressor and condenser fan motor during operation, while the start capacitor delivers the extra torque needed for compressor startup. When either unit degrades, symptoms include a humming condenser that won't start, a compressor that short-cycles within minutes, a fan motor that spins sluggishly or not at all, or the system tripping the breaker repeatedly under startup load.

  • Specs: P291-3553RS — Dual Run Capacitor, 370V/440V rated, round case, factory ±3% MFD tolerance | P281-1766 — Start Capacitor, rated for 2-ton (024) compressor application, designed for hard-start assist duty cycle
  • OEM vs Generic: OEM capacitors from Payne (ICP/Carrier family) are manufactured to exact factory tolerances. Aftermarket alternatives frequently deviate ±10% MFD, placing excess stress on the compressor windings and shortening equipment life — especially critical on a 2-ton unit where startup loads are tightly spec'd.
  • Install Difficulty: 2/5 — Always disconnect power at the disconnect box and discharge the capacitor fully using an insulated resistor or discharge tool before handling. Tools needed: 1/4" nut driver, needle-nose pliers, multimeter with capacitance function. Photograph all wiring connections before removal.
  • Warranty & Shipping: 1-year OEM factory warranty on both components. Orders ship same business day from our stocked warehouse — get your system running fast.

Compatibility: Both capacitors are factory-specified replacements for the Payne PA3ANA024000BAAA 2-ton split-system condenser. Always verify the MFD ratings and voltage on your unit's data plate before installing. If you are unsure which capacitor has failed, our technical team can help you verify fitment and diagnose before you order. In stock and ready to ship today.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Capacitor fit my Payne PA3ANA024000BAAA?
Yes. This is the factory-specified OEM capacitor for the Payne PA3ANA024000BAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the capacitor on my Payne PA3ANA024000BAAA?
Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.
My AC hums but won’t start. What part do I need?
An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).
Is this capacitor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne capacitor?
OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
