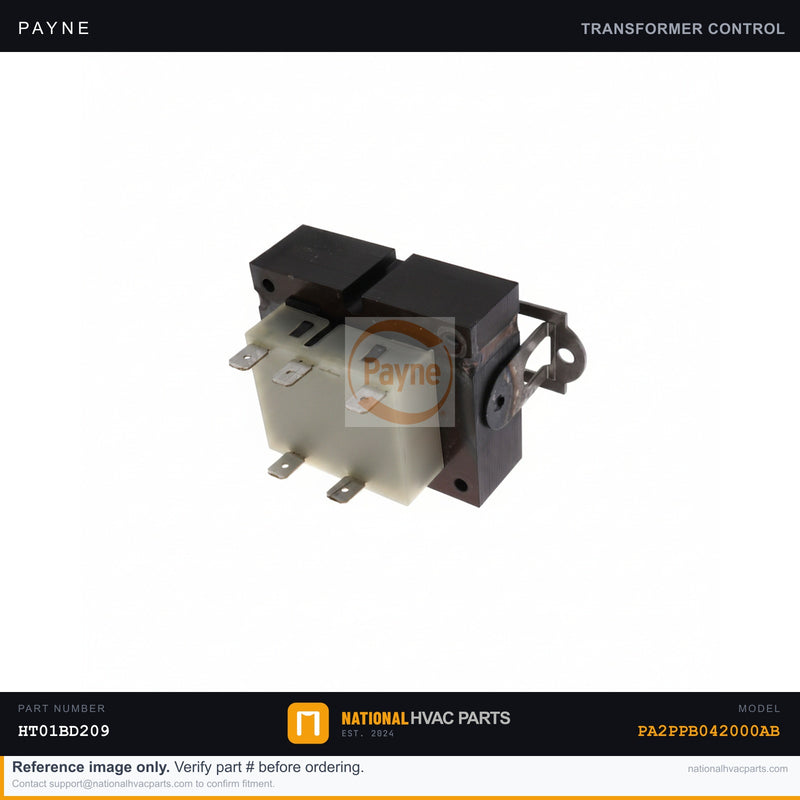

OEM Payne 40VA Transformer HT01BD209 for PA2PPB042000AB
Payne

OEM Payne 40VA Transformer HT01BD209 for PA2PPB042000AB

SKU: PAYNE-PA2PPB042000AB-TRANSFORMER-HT01BD209 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne 40VA Control Transformer HT01BD209 for Model PA2PPB042000AB

This OEM control transformer is the factory-specified replacement for the Payne PA2PPB042000AB packaged air conditioning unit. The transformer steps down 120V line voltage to the 24V signal that powers your thermostat, contactor coil, and all low-voltage control circuits. When it fails, the entire control system goes dark — the thermostat loses power, the system won't respond to any calls for cooling or heating, and no safety or diagnostic circuits will function. A failed transformer is one of the most common causes of a completely unresponsive HVAC system.

  • Specs: 40VA rating | 120V primary / 24V secondary | OEM part number HT01BD209 | Direct drop-in replacement with factory-matched terminal configuration
  • OEM vs Generic: This OEM transformer is wound to Payne's exact VA rating and insulation class. Generic transformers often run undersized, causing voltage sag under load that leads to contactor chatter and nuisance lockouts — compromising the longevity of your entire control system.
  • Install difficulty: 2/5 — Disconnect power at the breaker before beginning. Tools needed: flathead and Phillips screwdrivers, needle-nose pliers, multimeter to confirm 24V output after install. Photograph all low-voltage wiring before disconnecting terminals.
  • Warranty: 1-year OEM factory warranty against defects. In-stock and ships same business day from our warehouse.

Compatibility: Designed as the direct OEM replacement for the Payne PA2PPB042000AB packaged unit. Verify your existing transformer's VA rating and primary/secondary voltage on the unit's data plate before ordering. Our fitment team is available to confirm compatibility before you buy — same-day shipping ensures you're back up and running fast.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Transformer fit my Payne PA2PPB042000AB?
Yes. This is the factory-specified OEM transformer for the Payne PA2PPB042000AB. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the transformer on my Payne PA2PPB042000AB?
Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Photo wiring connections. Step 3: Disconnect wires from old transformer. Step 4: Remove mounting hardware. Step 5: Install new transformer, reconnect wires matching voltage ratings. Step 6: Verify 24V output with multimeter.
My thermostat has no power. What failed?
Thermostat with no display = failed 24V transformer (or blown control board fuse). Check the 3A/5A fuse on the control board first ($1–$5 fix). If fuse is good but no 24V output from transformer, replace transformer.
Is this transformer compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne transformer?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
