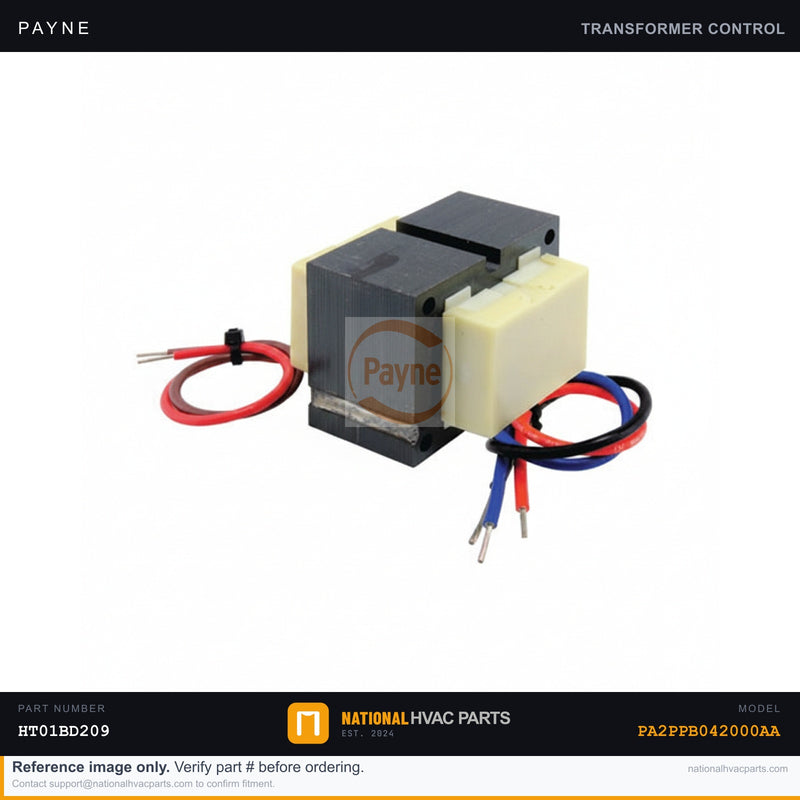

OEM Payne Control Transformer 40VA for Model PA2PPB042000AA

This OEM control transformer (part# HT01BD209) is the factory-specified replacement for the Payne PA2PPB042000AA packaged air conditioning unit. The transformer steps down 120V line voltage to 24V AC, powering the entire low-voltage control circuit — including the thermostat, contactor coil, and control board. When this transformer fails, nothing works: the thermostat goes dark, the system won't respond to calls for cooling or heating, and you may find a blown 3A fuse on the control board. A failed transformer is often the silent culprit behind what appears to be a total system failure.

• Specs: 40VA rating | 120V primary / 24V secondary | Factory-matched OEM winding tolerance | Compact footprint for direct drop-in replacement
• OEM vs Generic: OEM transformers like this HT01BD209 are wound to exact VA and voltage tolerances required by the Payne control board. Undersized or off-tolerance generic units can overheat, blow fuses repeatedly, or cause erratic control behavior that leads to misdiagnosis and unnecessary part replacements.
• Install difficulty: 2/5 — Disconnect power at the disconnect box and verify zero voltage with a multimeter before beginning. Tools needed: flathead and Phillips screwdrivers, needle-nose pliers, multimeter, wire nuts or spade terminals. Label or photograph all wiring before disconnecting the old transformer.
• Warranty: 1-year OEM factory warranty against defects. In-stock and ships same business day from our warehouse.

Compatibility: Engineered specifically for the Payne PA2PPB042000AA packaged unit. Always verify your existing transformer's VA rating and primary/secondary voltages against your unit's data plate before ordering. Our HVAC parts specialists are available to confirm fitment — just reach out before you order. In stock now and ships today.
