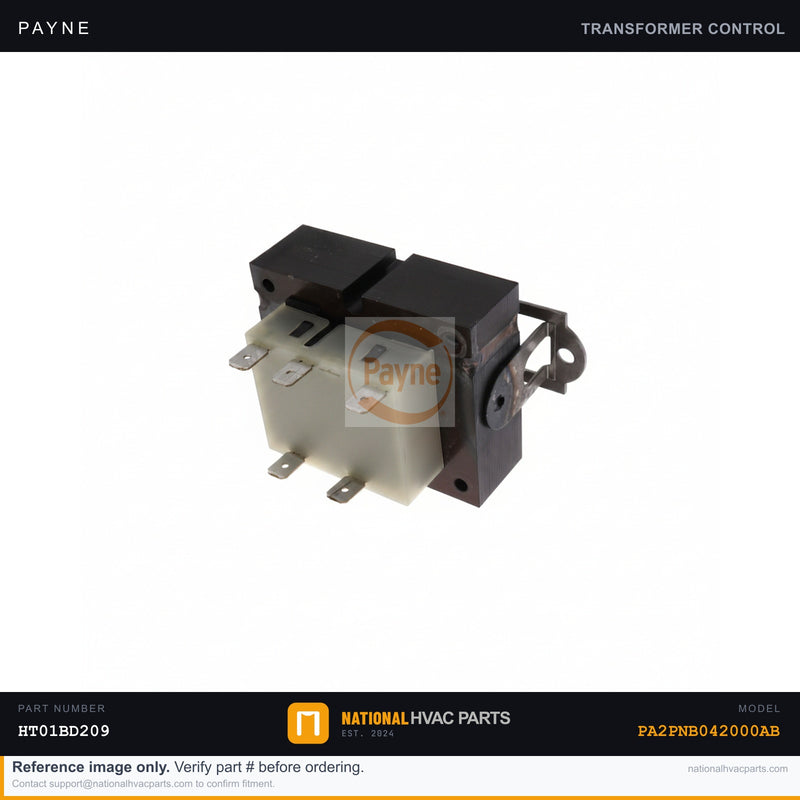

OEM Payne Transformer 40VA 120V/24V for PA2PNB042000AB
Payne

OEM Payne Transformer 40VA 120V/24V for PA2PNB042000AB

SKU: PAYNE-PA2PNB042000AB-TRANSFORMER-HT01BD209 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne 40VA Control Transformer for Model PA2PNB042000AB

This OEM control transformer (part# HT01BD209) is the factory-specified replacement for the Payne PA2PNB042000AB air conditioner. The transformer steps down 120V line voltage to the 24V signal required by the control board, thermostat, and all low-voltage components. When it fails, the entire control circuit goes dead — the thermostat goes blank, the system won't respond to any call for cooling or heating, and no components energize. It is often the first part to check when absolutely nothing works.

  • Specs: 40VA rating | Primary: 120V | Secondary: 24V | Factory-matched OEM design | Part Number: HT01BD209
  • OEM vs Generic: This OEM transformer meets Payne's exact VA rating and insulation class specifications. Generic transformers are frequently underrated, causing them to overheat, trip internal breakers, or fail prematurely under normal HVAC load conditions.
  • Install Difficulty: 2/5 — Disconnect all power before beginning. Tools needed: flathead and Phillips screwdrivers, needle-nose pliers, multimeter. Verify 24V output after installation before restoring the full system. Label or photograph all low-voltage wiring before disconnecting.
  • Warranty: 1-year OEM factory warranty. In stock and ships same business day from our warehouse.

Compatibility: Designed for the Payne PA2PNB042000AB split-system air conditioner. Verify your existing transformer's VA rating and primary/secondary voltages on the unit data plate before ordering. Our parts specialists are available to confirm fitment prior to purchase — same-day shipping on all in-stock orders.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Transformer fit my Payne PA2PNB042000AB?
Yes. This is the factory-specified OEM transformer for the Payne PA2PNB042000AB. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the transformer on my Payne PA2PNB042000AB?
Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Photo wiring connections. Step 3: Disconnect wires from old transformer. Step 4: Remove mounting hardware. Step 5: Install new transformer, reconnect wires matching voltage ratings. Step 6: Verify 24V output with multimeter.
My thermostat has no power. What failed?
Thermostat with no display = failed 24V transformer (or blown control board fuse). Check the 3A/5A fuse on the control board first ($1–$5 fix). If fuse is good but no 24V output from transformer, replace transformer.
Is this transformer compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne transformer?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
