OEM Payne Condenser Fan Motor HC35GE235 for PA2PNB024000AC
Payne

OEM Payne Condenser Fan Motor HC35GE235 for PA2PNB024000AC

SKU: PAYNE-PA2PNB024000AC-FAN_MOTOR-HC35GE235 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

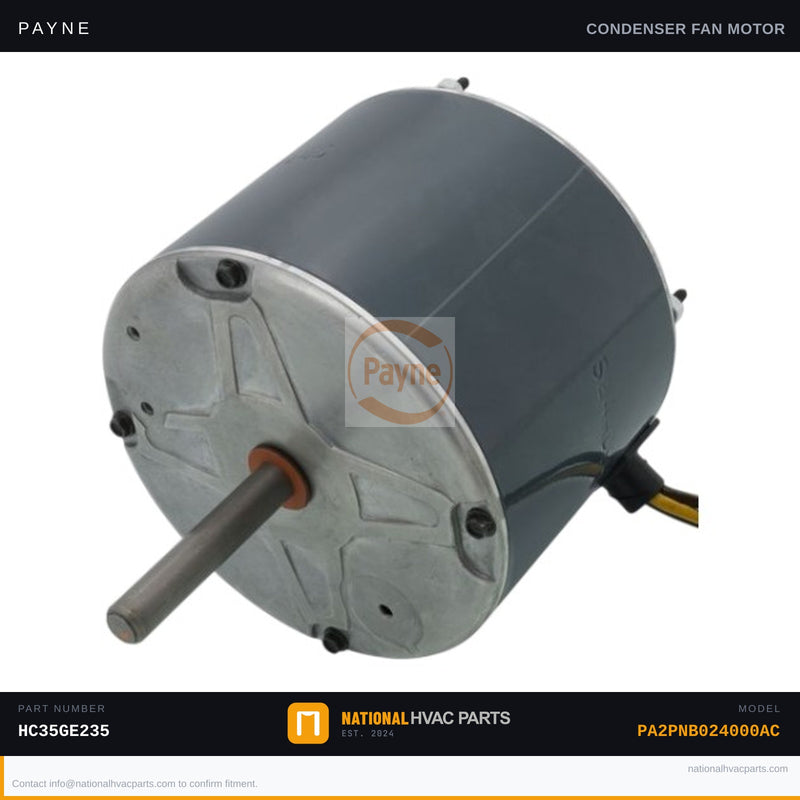

OEM Payne Condenser Fan Motor HC35GE235 for Model PA2PNB024000AC

This OEM condenser fan motor (part number HC35GE235) is the factory-specified replacement for the Payne PA2PNB024000AC split-system air conditioner. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to dissipate heat from the refrigerant. When this motor fails, the system will overheat, trigger high-pressure lockout, or shut down entirely on thermal protection — leaving your home without cooling. A failed motor may present as a humming condenser unit with no fan movement, intermittent shutdowns on hot days, or a completely dead outdoor unit despite the compressor attempting to start.

  • Specs: OEM part HC35GE235 | Factory-matched HP, RPM, and rotation direction | Correct shaft diameter and mounting configuration for PA2PNB024000AC | 200–230V rated for single-phase residential application
  • OEM vs Generic: This OEM motor is wound and balanced to exact factory specifications, ensuring proper airflow, correct RPM under load, and full thermal protection calibration. Aftermarket motors often vary in rotation, shaft length, or winding insulation class — risking premature failure or compressor damage from inadequate heat rejection.
  • Install difficulty: 3/5 — Disconnect power at the disconnect box and verify with a multimeter before opening the unit. Tools needed: nut driver set, wire stripper, needle-nose pliers, and a multimeter. Note the blade pitch and fan rotation direction before removal. Capacitor discharge is required if replacing simultaneously.
  • Warranty: 1-year OEM factory warranty against defects. Ships same business day from our climate-controlled parts warehouse.

Compatibility: Designed specifically for the Payne PA2PNB024000AC split-system condenser. Always verify HP, RPM, voltage, and shaft diameter against your unit's data plate before ordering. Our parts specialists are available to confirm fitment — order with confidence and get your system back up and running fast.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA2PNB024000AC?
Yes. This is the factory-specified OEM fan motor for the Payne PA2PNB024000AC. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA2PNB024000AC?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
