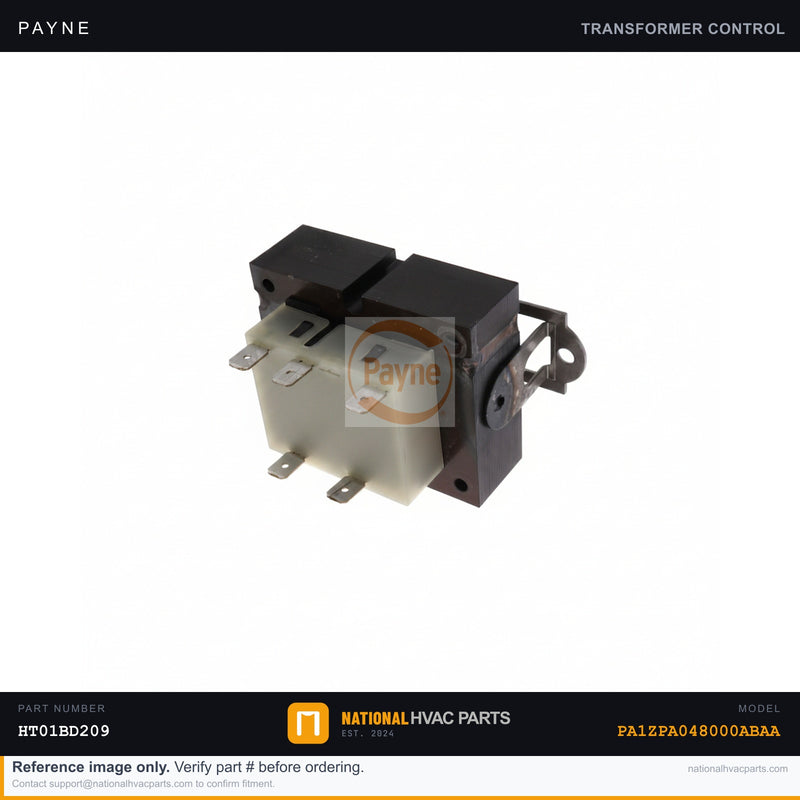

OEM Payne Control Transformer 40VA 120V/24V for Model PA1ZPA048000ABAA

This is the OEM factory-replacement transformer (part number HT01BD209) designed specifically for the Payne PA1ZPA048000ABAA packaged air conditioning unit. The transformer steps down line voltage (120V) to 24V AC to power the entire low-voltage control circuit — including the thermostat, contactor coil, and control board. When the transformer fails, nothing in the system responds: the thermostat goes blank, the contactor won't pull in, and the unit sits completely dead. A failed transformer is often caused by a shorted control wire, so always inspect low-voltage wiring before installing the replacement.

  • Specs: 40VA rating | Primary: 120V AC | Secondary: 24V AC | OEM part number HT01BD209 | Factory-matched for Payne PA1ZPA048000ABAA
  • OEM vs Generic: This OEM transformer is wound to exact VA and voltage specifications. Generic transformers may run under-rated VA, causing overheating, nuisance tripping of the internal fuse, and premature failure under normal control-circuit loads.
  • Install difficulty: 2/5 — Disconnect power at the disconnect box before beginning. Tools needed: flathead and Phillips screwdrivers, wire strippers, multimeter, and wire nuts. Verify input and output voltages with a multimeter after installation before restoring full power.
  • Warranty: 1-year OEM factory warranty. In stock and ships the same business day from our warehouse.

Compatibility: Engineered for the Payne PA1ZPA048000ABAA 4-ton packaged air conditioning unit. Confirm your existing transformer's VA rating and voltage markings on the data plate or unit wiring diagram before ordering. Our parts team is available to verify fitment — order with confidence and get back up and running today.
