OEM Payne Condenser Fan Motor 1/4-1/2 HP for PA1ZPA048000ABAA
Payne

OEM Payne Condenser Fan Motor 1/4-1/2 HP for PA1ZPA048000ABAA

SKU: PAYNE-PA1ZPA048000ABAA-FAN_MOTOR-HC39GR234 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

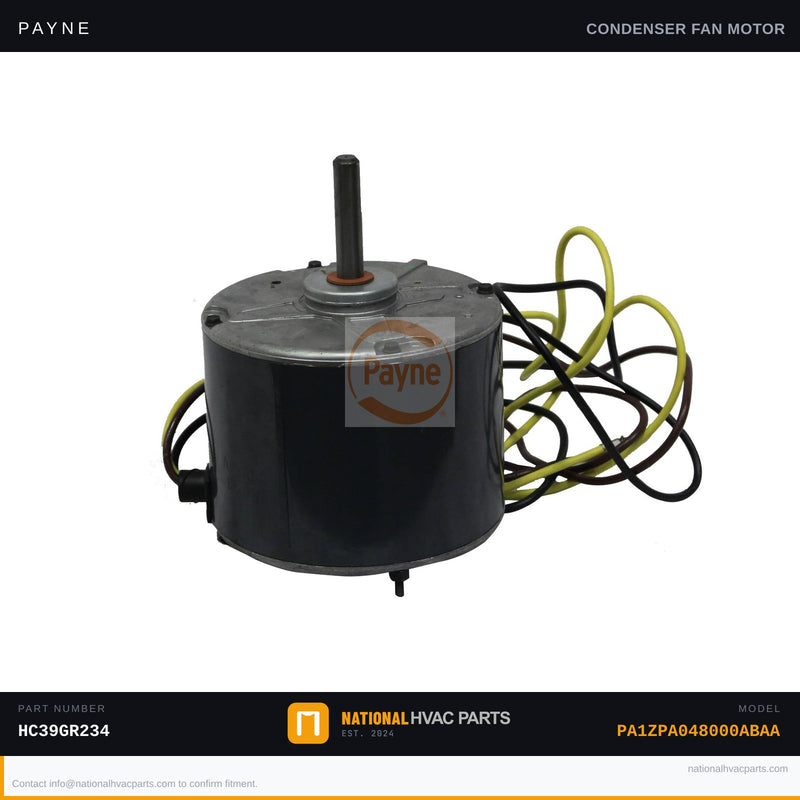

OEM Payne Condenser Fan Motor HC39GR234 for Model PA1ZPA048000ABAA

This is the factory OEM condenser fan motor (part number HC39GR234) for the Payne PA1ZPA048000ABAA 4-ton split-system air conditioner. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, dissipating heat from the refrigerant. When this motor fails, the condenser unit overheats, triggering high-pressure lockout or compressor shutdown — leaving you with warm air or no cooling at all. Common failure symptoms include the outdoor fan not spinning, the unit shutting off within minutes of startup, or a burning smell from the condenser cabinet.

  • Specs: Factory-matched HP (1/4–1/2 HP range) | 208–230V single-phase | 1075 RPM | Correct rotation and shaft diameter for PA1ZPA048000ABAA — always verify data plate before ordering
  • OEM vs Generic: This OEM motor is wound and balanced to exact Payne/ICP factory tolerances. Generic motors often differ in shaft length, rotation direction, or RPM, leading to poor airflow, premature bearing failure, or voided equipment warranties.
  • Install Difficulty: 3/5 — Disconnect power and capacitor before beginning. Tools needed: 1/4" and 5/16" nut drivers, wire nuts, multimeter, and blade puller (recommended). Note motor rotation direction (typically CCW when viewed from shaft end) and rewire to match original configuration.
  • Warranty: 1-year OEM factory warranty against defects. Orders placed by 3 PM local time ship same business day from our climate-controlled warehouse.

Compatibility: Engineered specifically for the Payne PA1ZPA048000ABAA 4-ton (048 = 48,000 BTU) split-system condenser. Always cross-reference the motor data plate on your existing unit — confirm voltage, HP, RPM, shaft diameter, and rotation — before installation. Our HVAC parts specialists are available to verify fitment prior to your order. In stock and ready to ship today.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA1ZPA048000ABAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA1ZPA048000ABAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA1ZPA048000ABAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
