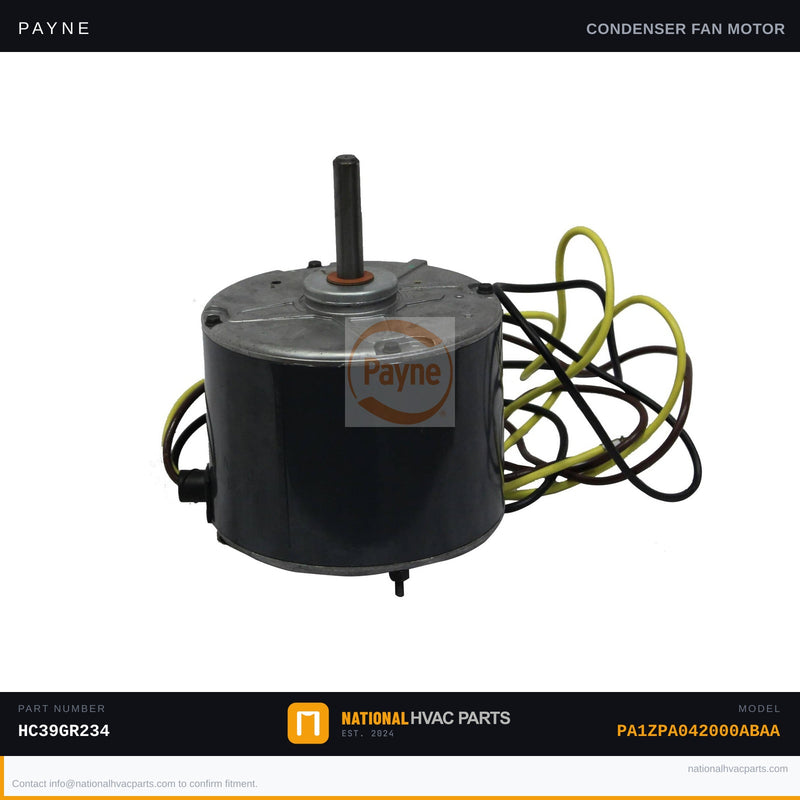

OEM Payne Condenser Fan Motor HC39GR234 for PA1ZPA042000ABAA
Payne

OEM Payne Condenser Fan Motor HC39GR234 for PA1ZPA042000ABAA

SKU: PAYNE-PA1ZPA042000ABAA-FAN_MOTOR-HC39GR234 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor HC39GR234 for Model PA1ZPA042000ABAA

This OEM condenser fan motor is the factory-specified replacement for the Payne PA1ZPA042000ABAA split-system air conditioner. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to expel heat from the refrigerant. When this motor fails, the compressor overheats and trips on high-pressure lockout — leaving you with warm air or a completely non-functional system. Common symptoms include the outdoor unit running briefly then shutting off, no fan blade movement at startup, or a buzzing noise with no rotation.

  • Specs: OEM Part Number HC39GR234 | Designed for 4-ton (042) Payne split-system condensers | Factory-matched HP, RPM, rotation direction, and shaft diameter for direct drop-in replacement | 208/230V single-phase operation
  • OEM vs Generic: This OEM motor is wound and balanced to Payne's exact factory specifications. Aftermarket motors often vary in rotation direction, shaft length, or mounting stud spacing — causing vibration, noise, and premature failure. OEM ensures a correct fit the first time.
  • Install difficulty: 3/5 — Disconnect power and capacitor before removing the motor. Tools needed: 1/4" and 5/16" nut drivers, wire nuts, multimeter, and blade puller (recommended). Photograph all wiring and blade orientation before disassembly. Ensure correct blade pitch direction on reinstall.
  • Warranty: 1-year OEM factory warranty against defects. In-stock units ship same business day from our warehouse so your repair isn't delayed.

Compatibility: Engineered for the Payne PA1ZPA042000ABAA split-system condenser. Always verify motor HP, RPM, shaft diameter, and rotation direction against your unit's data plate before ordering. Our parts specialists are available to confirm fitment — reach out before you buy for total confidence.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA1ZPA042000ABAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA1ZPA042000ABAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA1ZPA042000ABAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
