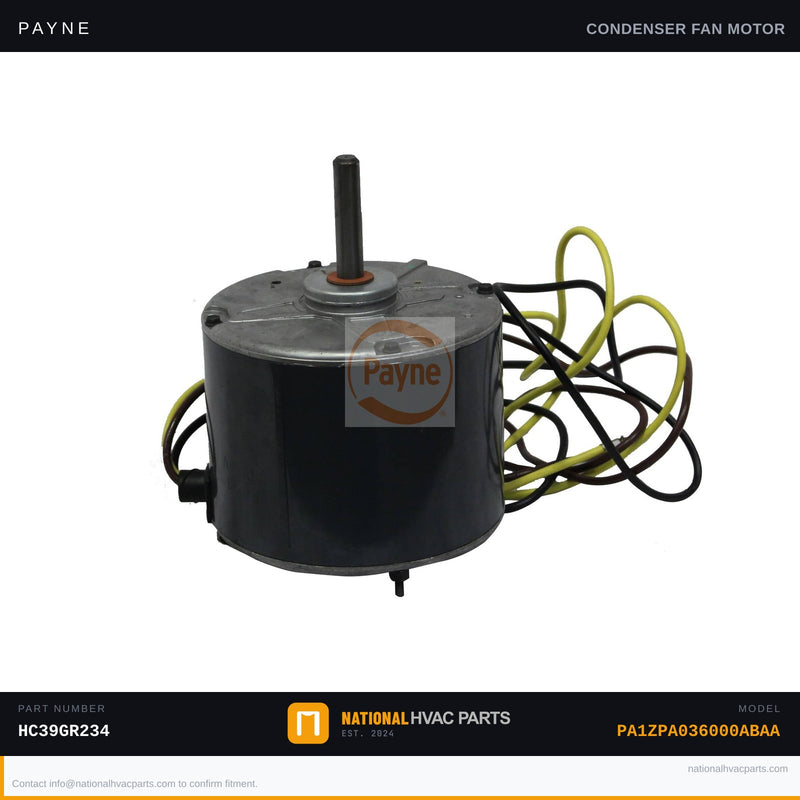

OEM Payne Condenser Fan Motor HC39GR234 for PA1ZPA036000ABAA
Payne

OEM Payne Condenser Fan Motor HC39GR234 for PA1ZPA036000ABAA

SKU: PAYNE-PA1ZPA036000ABAA-FAN_MOTOR-HC39GR234 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor HC39GR234 for Model PA1ZPA036000ABAA

This OEM condenser fan motor (part number HC39GR234) is the factory-specified replacement for the Payne PA1ZPA036000ABAA split-system air conditioner. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, dissipating heat from the refrigerant. When this motor fails, the condenser coil overheats, triggering high-pressure lockout or causing the system to run continuously without cooling. Common failure symptoms include a humming outdoor unit with no fan movement, intermittent shutdowns on hot days, or a seized motor that trips the breaker.

  • Specs: Matches factory HP, RPM, rotation direction, and shaft diameter for Payne PA1ZPA036000ABAA | 208–230V single-phase | Permanent split capacitor (PSC) design | Pre-lubricated sleeve or ball bearings for long service life
  • OEM vs Generic: The OEM HC39GR234 motor is wound and balanced to exact factory tolerances, ensuring correct airflow CFM across the condenser coil. Generic motors may vary in RPM and rotation, risking blade interference, reduced efficiency, and shortened compressor life due to inadequate heat rejection.
  • Install difficulty: 3/5 — Disconnect power and verify capacitor discharge before beginning. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter, and a blade puller (recommended). Note fan blade pitch and depth before removal. Always photograph wiring and blade orientation prior to disassembly.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. In-stock units ship same business day from our climate-controlled warehouse.

Compatibility: Designed specifically for the Payne PA1ZPA036000ABAA 3-ton split-system condenser. Verify motor HP, voltage, RPM, rotation, and shaft diameter against your unit's data plate before ordering. Our fitment team is available to confirm compatibility — reach out before you order and we'll make sure it's right the first time. Orders placed before 3 PM EST ship same day.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA1ZPA036000ABAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA1ZPA036000ABAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA1ZPA036000ABAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
