OEM Payne Transformer 40VA 120V/24V for PA1ZNA042000ABAA
Payne

OEM Payne Transformer 40VA 120V/24V for PA1ZNA042000ABAA

SKU: PAYNE-PA1ZNA042000ABAA-TRANSFORMER-HT01BD209 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

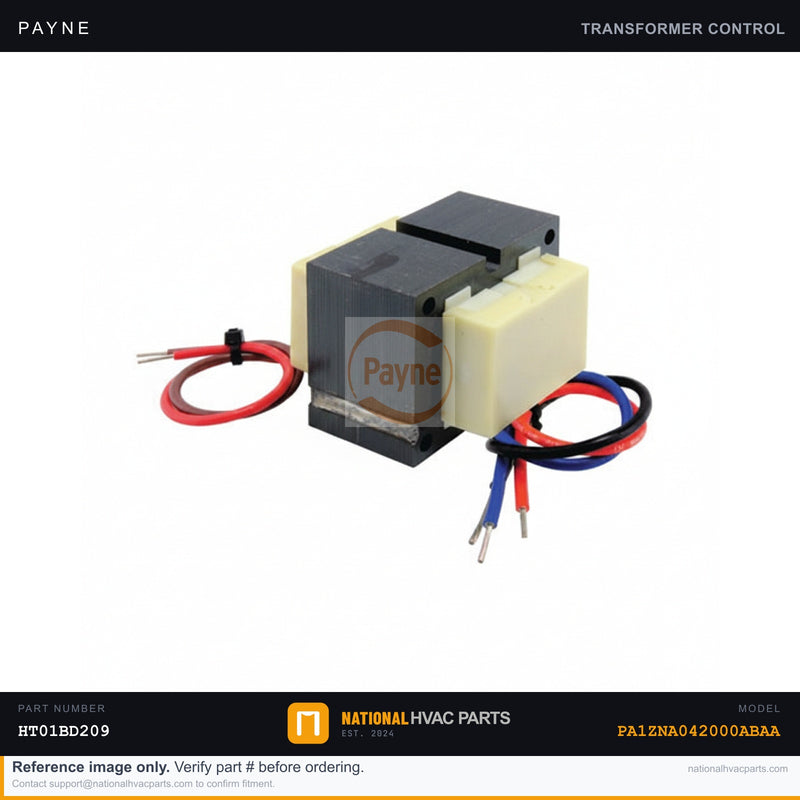

OEM Payne 40VA Control Transformer for Model PA1ZNA042000ABAA

This OEM control transformer (part number HT01BD209) is the factory-specified replacement for the Payne PA1ZNA042000ABAA air conditioner. The transformer steps down 120V line voltage to the 24V signal required by your thermostat, contactor coil, and control board. When this component fails, the entire 24V control circuit goes dead — the thermostat goes blank, the system won't respond to any commands, and no safety safeties or staging functions can operate. If your system is completely unresponsive but line voltage is confirmed at the unit, a failed transformer is the most common culprit.

  • Specs: 40VA rating | 120V primary / 24V secondary | Hardwired leads | Factory-matched output tolerance for stable control voltage
  • OEM vs Generic: OEM transformers (HT01BD209) are wound to exact VA and voltage specifications. Undersized or off-tolerance generic units can cause nuisance tripping, brownouts in the control circuit, and premature contactor coil failure — making OEM the clear choice for long-term reliability.
  • Install difficulty: 2/5 — Always shut off power at the disconnect and breaker before beginning. Tools needed: flathead and Phillips screwdrivers, wire stripper, multimeter, wire nuts. Label all low-voltage wires before disconnecting. Verify 24V output with a multimeter after installation before restoring full power.
  • Warranty: 1-year OEM factory warranty. In-stock and ships same business day from our warehouse.

Compatibility: Designed specifically for the Payne PA1ZNA042000ABAA split-system air conditioner. Confirm 120V primary and 24V/40VA secondary ratings match your unit's data plate before ordering. Our parts team is available to verify fitment — reach out before you order if you have any questions about compatibility.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Transformer fit my Payne PA1ZNA042000ABAA?
Yes. This is the factory-specified OEM transformer for the Payne PA1ZNA042000ABAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the transformer on my Payne PA1ZNA042000ABAA?
Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Photo wiring connections. Step 3: Disconnect wires from old transformer. Step 4: Remove mounting hardware. Step 5: Install new transformer, reconnect wires matching voltage ratings. Step 6: Verify 24V output with multimeter.
My thermostat has no power. What failed?
Thermostat with no display = failed 24V transformer (or blown control board fuse). Check the 3A/5A fuse on the control board first ($1–$5 fix). If fuse is good but no 24V output from transformer, replace transformer.
Is this transformer compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne transformer?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
