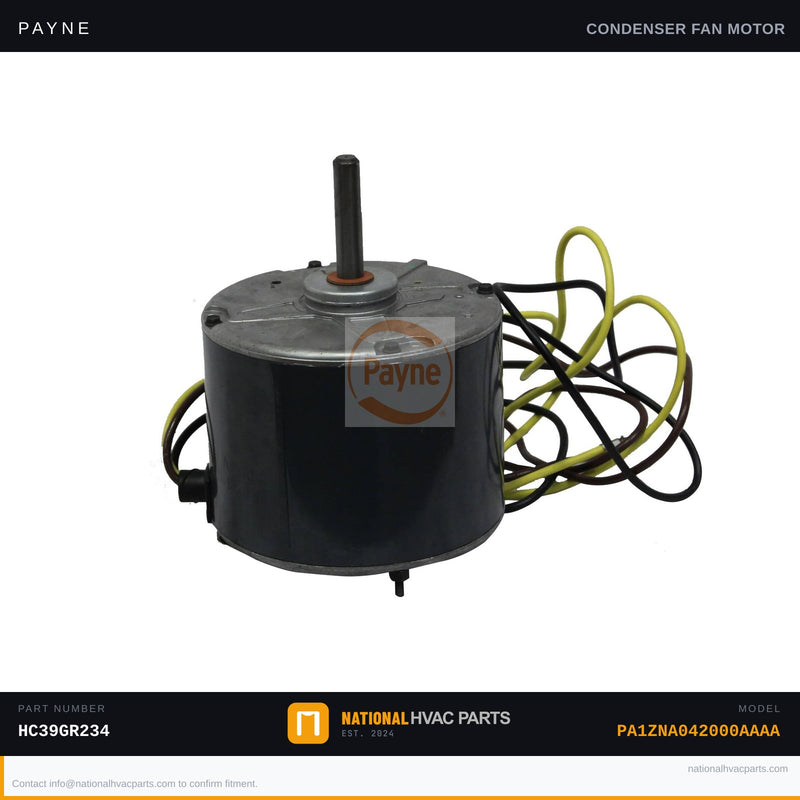

OEM Payne Condenser Fan Motor HC39GR234 for Model PA1ZNA042000AAAA

This is the factory-specified OEM condenser fan motor (part number HC39GR234) for the Payne PA1ZNA042000AAAA split-system air conditioner. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to dissipate heat from the refrigerant. When this motor fails, the condenser coil overheats, triggering high-pressure lockout and a complete loss of cooling. Common symptoms include the outdoor fan not spinning, the unit shutting off shortly after startup, or a burning smell from the condenser cabinet.

• Specs: OEM Part No. HC39GR234 | Rated for 1/4–1/2 HP | Factory-matched RPM, rotation direction, and shaft diameter for the PA1ZNA042000AAAA | 208–230V single-phase | Permanently lubricated bearings for extended service life
• OEM vs Generic: This OEM motor is wound and balanced to exact factory specifications, ensuring correct airflow across the coil. Generic motors frequently carry wider RPM and HP tolerances that can reduce efficiency, increase compressor head pressure, and void manufacturer warranties.
• Install Difficulty: 3/5 — Disconnect and lock out power before beginning. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, needle-nose pliers, and a multimeter. Note blade pitch and orientation before removal. Reuse the existing fan blade only if undamaged; inspect shaft set-screw carefully. Always verify rotation direction matches the original motor label before powering up.
• Warranty: Backed by a 1-year OEM factory warranty. In-stock units ship same business day from our warehouse when ordered before cutoff.

Compatibility: Engineered specifically for the Payne PA1ZNA042000AAAA 3.5-ton split-system condenser. Confirm voltage, HP, RPM, and shaft diameter against your unit's data plate before ordering. If you have any fitment questions, our HVAC parts specialists are available to verify compatibility before you buy — so you get the right part the first time.
