OEM Payne Transformer 40VA 120/24V for PA1ZNA024000ACAA
Payne

OEM Payne Transformer 40VA 120/24V for PA1ZNA024000ACAA

SKU: PAYNE-PA1ZNA024000ACAA-TRANSFORMER-HT01BD209 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

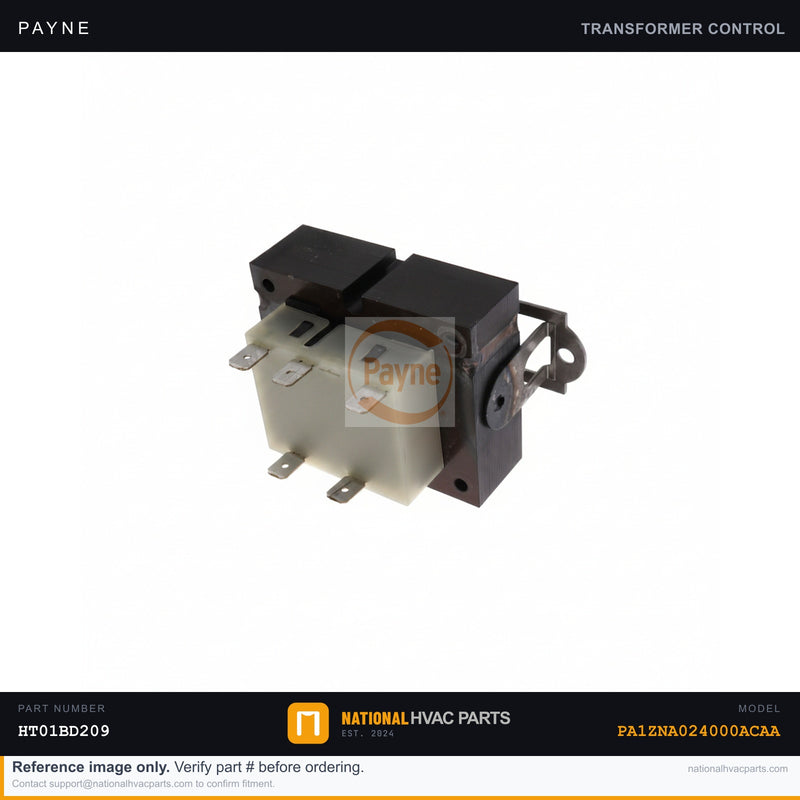

OEM Payne 40VA Control Transformer for Model PA1ZNA024000ACAA

This OEM replacement transformer (part# HT01BD209) is the factory-specified control transformer for the Payne PA1ZNA024000ACAA split-system air conditioner. The transformer steps down 120V line voltage to the 24V AC signal that powers your thermostat, contactor coil, and all low-voltage control logic. When this part fails, the entire control circuit goes dead — your thermostat loses power, the system won't respond to any commands, and no heating or cooling is possible. It is often one of the first components to inspect when nothing in the system responds at all.

  • Specs: 40VA rating | Primary: 120V AC | Secondary: 24V AC | OEM part number HT01BD209 | Factory-matched for Payne PA1ZNA024000ACAA
  • OEM vs Generic: This is the exact factory transformer. OEM units are wound to precise VA and voltage tolerances, protecting downstream controls from voltage fluctuations. Generic transformers may underperform under full control-circuit load, causing nuisance lockouts or premature contactor coil failure.
  • Install Difficulty: 2/5 — Shut off all power at the breaker and disconnect the furnace switch before beginning. Tools needed: flathead and Phillips screwdrivers, needle-nose pliers, wire stripper, and a multimeter to confirm 24V output after installation. Label or photograph all wiring connections before removal.
  • Warranty: 1-year OEM factory warranty. Orders placed by 3PM EST ship same business day from our climate-controlled parts warehouse.

Compatibility: Designed specifically for the Payne PA1ZNA024000ACAA split-system unit. Always verify your existing transformer's VA rating and primary/secondary voltages against your unit's data plate before ordering. Our parts specialists are available to confirm fitment — reach out before you order if you have any questions.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Transformer fit my Payne PA1ZNA024000ACAA?
Yes. This is the factory-specified OEM transformer for the Payne PA1ZNA024000ACAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the transformer on my Payne PA1ZNA024000ACAA?
Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Photo wiring connections. Step 3: Disconnect wires from old transformer. Step 4: Remove mounting hardware. Step 5: Install new transformer, reconnect wires matching voltage ratings. Step 6: Verify 24V output with multimeter.
My thermostat has no power. What failed?
Thermostat with no display = failed 24V transformer (or blown control board fuse). Check the 3A/5A fuse on the control board first ($1–$5 fix). If fuse is good but no 24V output from transformer, replace transformer.
Is this transformer compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne transformer?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
