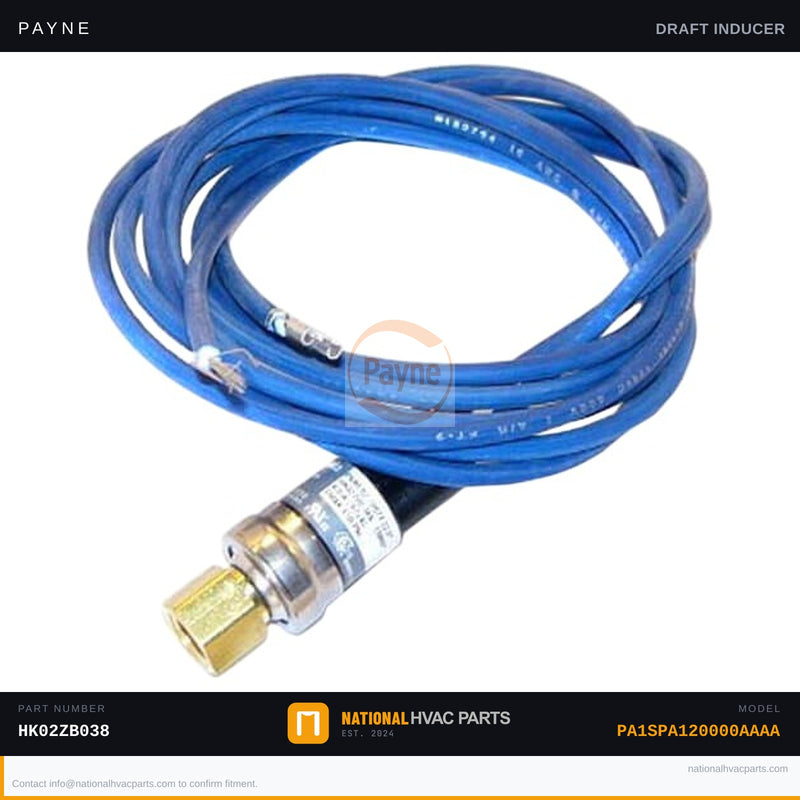

OEM Payne Pressure Switch HK02ZB038 for PA1SPA120000AAAA
Payne

OEM Payne Pressure Switch HK02ZB038 for PA1SPA120000AAAA

SKU: PAYNE-PA1SPA120000AAAA-PRESSURE_SWITCH-HK02ZB038 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Pressure Switch HK02ZB038 for Model PA1SPA120000AAAA

This OEM pressure switch (part number HK02ZB038) is the factory-specified replacement for the Payne PA1SPA120000AAAA furnace. The pressure switch is a critical safety component that monitors negative pressure created by the inducer draft motor, confirming proper venting before allowing the ignition sequence to proceed. When this switch fails or sticks closed/open, the furnace control board will lock out the system before ignition — leaving you with no heat and often a flashing fault code indicating a pressure switch error.

  • Specs: OEM part number HK02ZB038 | Rated water column (W.C.) pressure factory-matched to PA1SPA120000AAAA inducer specs | Single-port or dual-port configuration per OEM design | Designed for natural gas and LP applications
  • OEM vs Generic: OEM pressure switches are calibrated to the exact W.C. rating required by your furnace's inducer assembly. Generic alternatives may use off-tolerance set points, causing nuisance lockouts or — more dangerously — failing to detect a true venting problem.
  • Install difficulty: 3/5 — Turn off power and gas before servicing. Tools needed: 1/4" nut driver, flathead screwdriver, multimeter (continuity test), and manometer for verification. Inspect rubber hose for cracks before installing new switch; a cracked hose causes the same symptom as a failed switch.
  • Warranty: 1-year OEM factory warranty. Orders placed by 3 PM ship same business day from our warehouse.

Compatibility: Engineered specifically for the Payne PA1SPA120000AAAA furnace. Always verify the W.C. rating stamped on your existing switch matches before installation. If you're unsure of fitment, our HVAC parts specialists are available to confirm compatibility before you order — same-day shipping available on all in-stock OEM parts.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Pressure Switch fit my Payne PA1SPA120000AAAA?
Yes. This is the factory-specified OEM pressure switch for the Payne PA1SPA120000AAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the pressure switch on my Payne PA1SPA120000AAAA?
Difficulty: Medium (20–30 min)
Step 1: Turn off power. Step 2: Locate pressure switch near draft inducer. Step 3: Note tubing orientation. Step 4: Disconnect tubing and wires. Step 5: Remove screw, install new switch. Step 6: Reconnect tubing and wires, restore power.
My furnace shows a pressure switch error. What do I replace?
Furnace LED showing pressure switch error = switch not detecting draft inducer airflow. Try first: clear the rubber tubing to the switch (often clogged with condensation). If problem persists, replace the pressure switch.
Is this pressure switch compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne pressure switch?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
