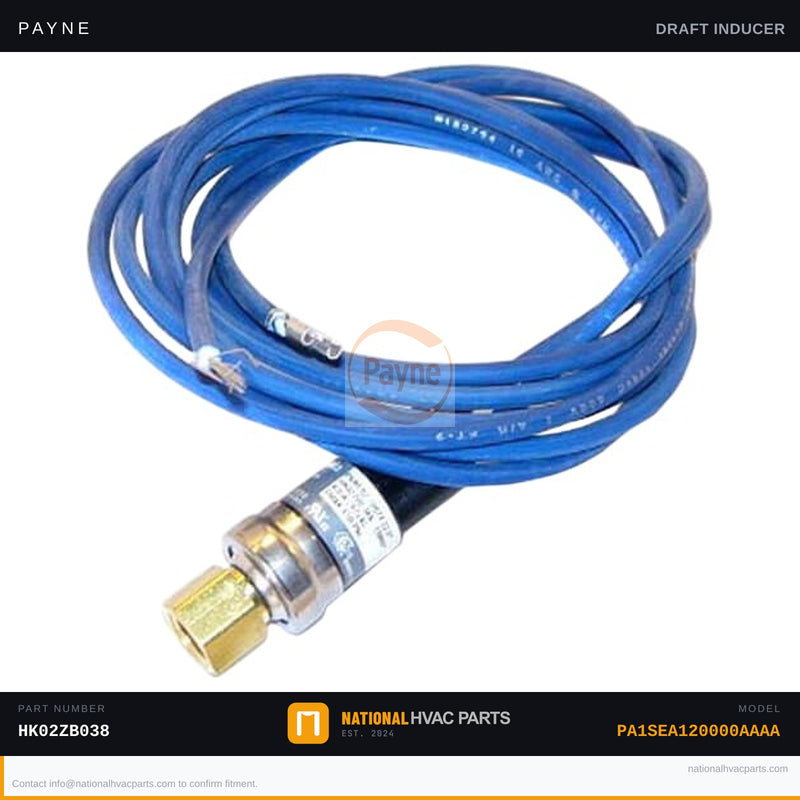

OEM Payne Pressure Switch HK02ZB038 for PA1SEA120000AAAA
Payne

OEM Payne Pressure Switch HK02ZB038 for PA1SEA120000AAAA

SKU: PAYNE-PA1SEA120000AAAA-PRESSURE_SWITCH-HK02ZB038 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Pressure Switch HK02ZB038 for Model PA1SEA120000AAAA

This is the factory OEM replacement pressure switch (part number HK02ZB038) for the Payne PA1SEA120000AAAA furnace. The pressure switch is a critical safety component that monitors the negative pressure created by the inducer draft motor to confirm proper venting before allowing the ignition sequence to proceed. When this switch fails or sticks open, the control board will lock out the system prior to ignition — resulting in a no-heat condition with the inducer running but the burners never lighting.

  • Specs: OEM-matched water column (W.C.) rating | Single-port hose connection | 24V control circuit compatible | Factory-calibrated trip point for precise inducer verification on the PA1SEA120000AAAA
  • OEM vs Generic: This is a genuine OEM part built to exact factory specifications. Generic pressure switches frequently carry imprecise W.C. ratings that can cause nuisance lockouts, failed ignition sequences, or — more dangerously — allow ignition under improper venting conditions. OEM is always the recommended choice for safety-critical components.
  • Install Difficulty: 2/5 — Straightforward swap with basic hand tools. Tools needed: flathead and Phillips screwdrivers, needle-nose pliers. Power down the furnace at the breaker before starting. Disconnect the hose port and two wiring leads, swap the switch, and reconnect. Always clear any fault codes from the control board after replacement.
  • Warranty: 1-year OEM factory warranty. In stock and ships same business day from our warehouse.

Compatibility: Designed specifically for the Payne PA1SEA120000AAAA furnace. Verify the existing part number on your switch label before ordering to ensure correct W.C. rating match. If you are unsure of fitment, our HVAC parts specialists are available to confirm compatibility before you purchase. Order today and get same-day shipping on in-stock OEM parts.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Pressure Switch fit my Payne PA1SEA120000AAAA?
Yes. This is the factory-specified OEM pressure switch for the Payne PA1SEA120000AAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the pressure switch on my Payne PA1SEA120000AAAA?
Difficulty: Medium (20–30 min)
Step 1: Turn off power. Step 2: Locate pressure switch near draft inducer. Step 3: Note tubing orientation. Step 4: Disconnect tubing and wires. Step 5: Remove screw, install new switch. Step 6: Reconnect tubing and wires, restore power.
My furnace shows a pressure switch error. What do I replace?
Furnace LED showing pressure switch error = switch not detecting draft inducer airflow. Try first: clear the rubber tubing to the switch (often clogged with condensation). If problem persists, replace the pressure switch.
Is this pressure switch compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne pressure switch?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
