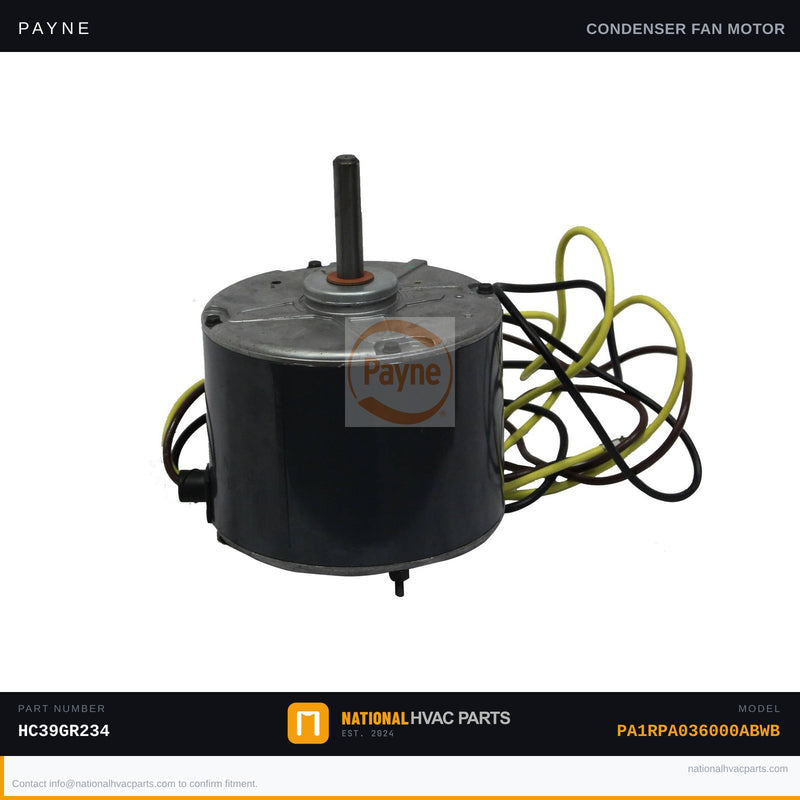

OEM Payne Condenser Fan Motor 1/4 HP for PA1RPA036000ABWB
Payne

OEM Payne Condenser Fan Motor 1/4 HP for PA1RPA036000ABWB

SKU: PAYNE-PA1RPA036000ABWB-FAN_MOTOR-HC39GR234 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor HC39GR234 for Model PA1RPA036000ABWB

This is the factory OEM replacement condenser fan motor (part number HC39GR234) for the Payne PA1RPA036000ABWB split-system air conditioner. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to dissipate heat from the refrigerant. When this motor fails, the outdoor unit will run with no airflow, causing the compressor to overheat, trip on high-pressure lockout, or shut down entirely — leaving your home without cooling. Common failure signs include the outdoor fan not spinning, the motor running hot to the touch, a loud humming or grinding noise from the condenser cabinet, or a burning smell from the unit.

  • Specs: 1/4 HP | 208–230V single-phase | Factory-matched RPM and rotation direction | Correct shaft diameter and mounting configuration for PA1RPA036000ABWB | Thermally protected
  • OEM vs Generic: This OEM motor is wound and balanced to Payne's exact factory tolerances, ensuring correct airflow CFM across the condenser coil. Aftermarket motors frequently differ in RPM or rotation, reducing efficiency, increasing compressor head pressure, and voiding remaining equipment warranties.
  • Install difficulty: 3/5 — Requires disconnecting power at the disconnect box and verifying zero voltage with a multimeter before opening the unit. Tools needed: 1/4" and 5/16" nut drivers, wire stripper, multimeter, blade screwdriver. Document all wiring connections and fan blade orientation before removal. Capacitor discharge required if replacing capacitor simultaneously.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. In-stock and ships same business day from our warehouse.

Compatibility: Engineered specifically for the Payne PA1RPA036000ABWB 3-ton split-system condenser. Always confirm horsepower, voltage, rotation direction, and shaft diameter against the data plate on your existing motor before finalizing your order. Our fitment team is available to verify compatibility — reach out before you order if you have any questions. Order today and receive same-business-day shipping.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA1RPA036000ABWB?
Yes. This is the factory-specified OEM fan motor for the Payne PA1RPA036000ABWB. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA1RPA036000ABWB?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
