OEM Payne Transformer 40VA 120/240V-24V for PA1PPB048000AAAA
Payne

OEM Payne Transformer 40VA 120/240V-24V for PA1PPB048000AAAA

SKU: PAYNE-PA1PPB048000AAAA-TRANSFORMER-HT01BD209 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

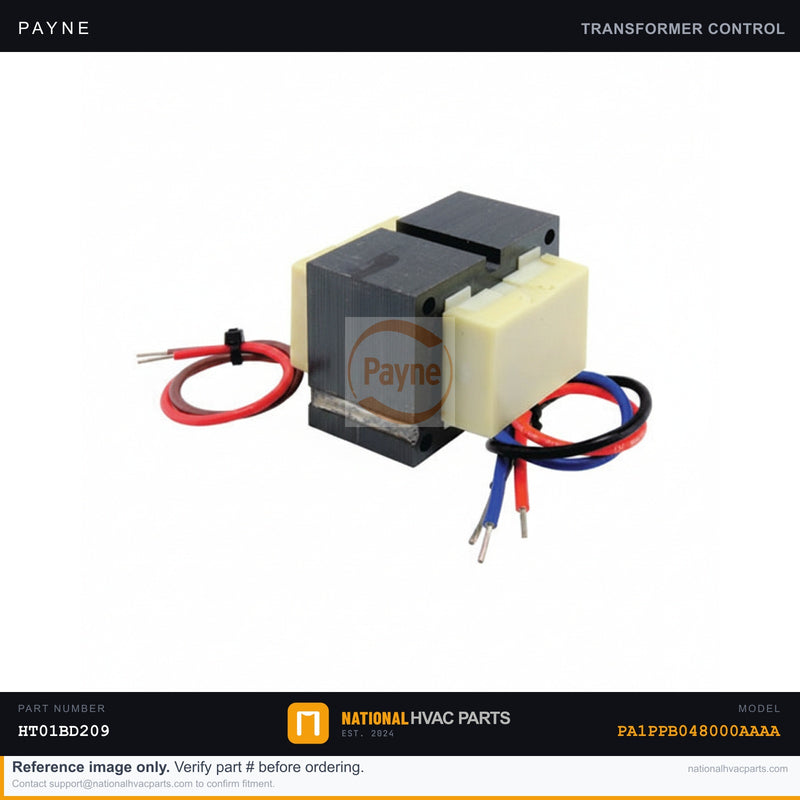

OEM Payne 40VA Control Transformer HT01BD209 for Model PA1PPB048000AAAA

This is the factory OEM replacement transformer (part number HT01BD209) for the Payne PA1PPB048000AAAA packaged heat pump unit. The transformer steps down line voltage (120V or 240V) to the 24V AC signal that powers your thermostat, control board, contactor coil, and all low-voltage safety circuits. When this transformer fails, the entire control circuit loses power — the result is a completely unresponsive system with no thermostat display, no contactor engagement, and no heating or cooling operation whatsoever.

  • Specs: 40VA rating | Primary: 120/240V | Secondary: 24V AC | Replaces OEM part number HT01BD209 | Factory-matched impedance and thermal protection
  • OEM vs Generic: This OEM transformer is wound to exact factory VA and voltage specifications. Undersized or off-tolerance generic transformers can overheat, trip their internal fuse prematurely, or fail to maintain stable 24V output under full control-circuit load — causing nuisance lockouts or repeat failures.
  • Install Difficulty: 2/5 — Always disconnect power at the breaker before beginning. Tools needed: flathead and Phillips screwdrivers, wire stripper, multimeter. Verify primary voltage at your disconnect before wiring. Label all low-voltage wires prior to removal and confirm output reads 24V AC after installation.
  • Warranty: 1-year OEM factory warranty against defects. Ships same business day from our stocked warehouse when ordered before cutoff.

Compatibility: Designed specifically for the Payne PA1PPB048000AAAA packaged heat pump (4-ton, 48,000 BTU class). Confirm the HT01BD209 part number on your existing transformer's label before ordering. If your unit's data plate shows a different transformer part number, contact our fitment team — we verify compatibility before every order ships.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Transformer fit my Payne PA1PPB048000AAAA?
Yes. This is the factory-specified OEM transformer for the Payne PA1PPB048000AAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the transformer on my Payne PA1PPB048000AAAA?
Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Photo wiring connections. Step 3: Disconnect wires from old transformer. Step 4: Remove mounting hardware. Step 5: Install new transformer, reconnect wires matching voltage ratings. Step 6: Verify 24V output with multimeter.
My thermostat has no power. What failed?
Thermostat with no display = failed 24V transformer (or blown control board fuse). Check the 3A/5A fuse on the control board first ($1–$5 fix). If fuse is good but no 24V output from transformer, replace transformer.
Is this transformer compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne transformer?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
