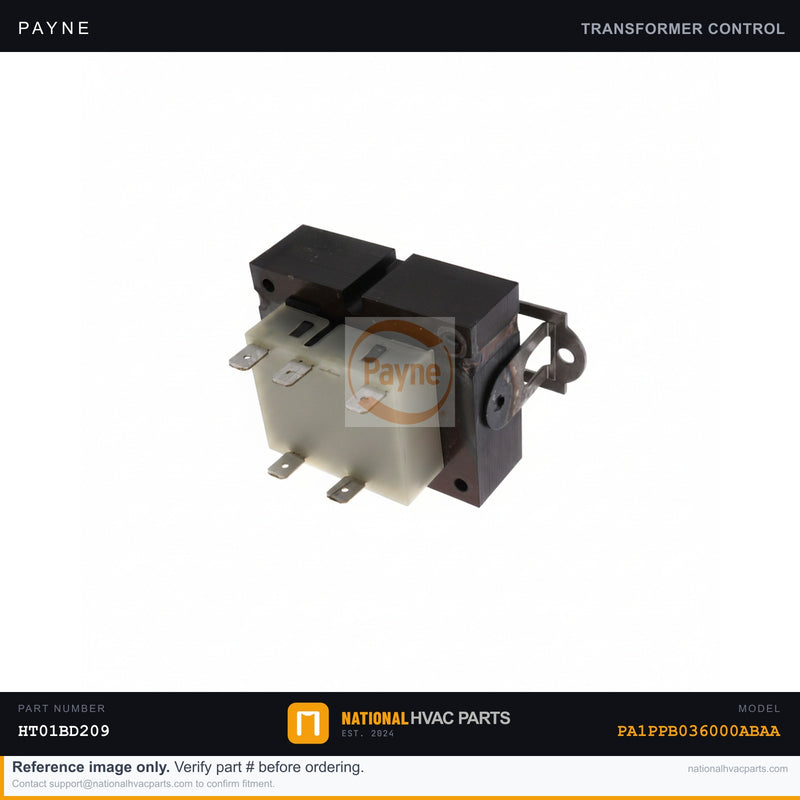

OEM Payne 40VA Control Transformer for Model PA1PPB036000ABAA

This is the factory OEM replacement transformer (part# HT01BD209) for the Payne PA1PPB036000ABAA packaged air conditioning unit. The transformer steps down line voltage from 120V to the 24V AC signal that powers your thermostat, control board, contactor coil, and all low-voltage control circuits. When this component fails, absolutely nothing in the system will respond — no thermostat communication, no staging, no fan or compressor activation. If your system is completely dead at the thermostat despite confirmed line power at the unit, a failed transformer is one of the first components to test.

• Specs: 40VA rating | 120V primary input | 24V secondary output | OEM part number HT01BD209 | Factory-matched impedance and thermal protection
• OEM vs Generic: OEM transformers are wound to exact VA ratings and include factory-grade thermal cutoffs. Generic units often lack proper overcurrent protection, which can cause repeat failures if an underlying wiring fault is present — leaving the root cause unresolved.
• Install difficulty: 2/5 — Shut off all power at the breaker before servicing. Tools needed: flathead and Phillips screwdrivers, needle-nose pliers, multimeter (to confirm 24V output after install). Label or photograph all low-voltage wire connections before disconnecting. Fuse the 24V secondary at 3A if not already protected.
• Warranty: 1-year OEM factory warranty against defects. Orders placed by 3PM local time ship same business day from our climate-controlled warehouse.

Compatibility: This transformer is factory-specified for the Payne PA1PPB036000ABAA packaged unit. Always verify primary voltage (120V) and VA rating on your existing transformer's label before ordering to confirm fitment. Our HVAC parts specialists are available to verify compatibility before you purchase — no guesswork required. Order now and restore full control circuit operation — in stock and ships today.
