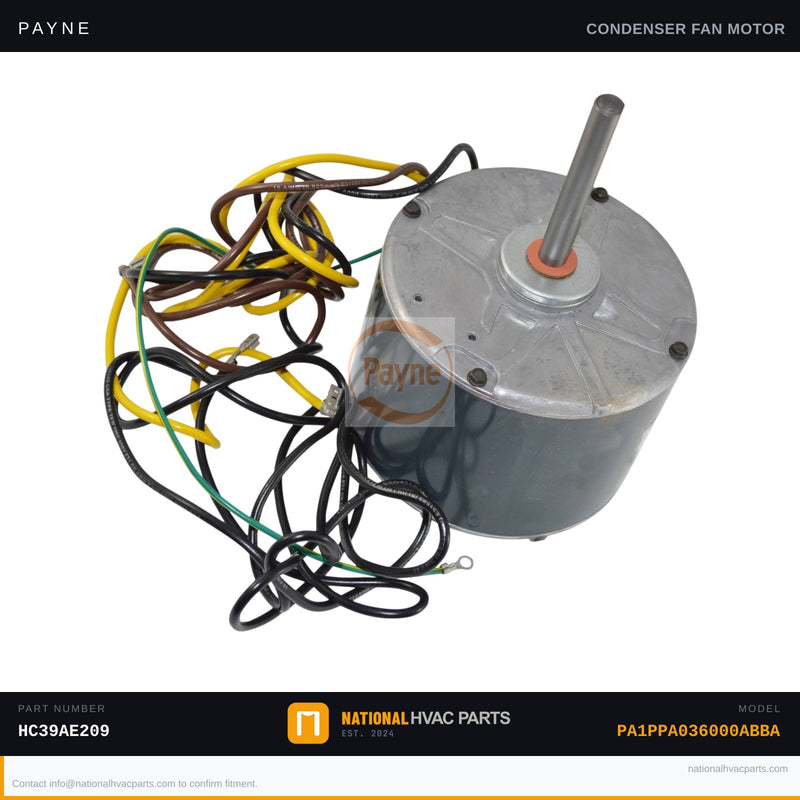

OEM Payne Condenser Fan Motor HC39AE209 for Model PA1PPA036000ABBA

This is the factory-specified OEM condenser fan motor (part number HC39AE209) for the Payne PA1PPA036000ABBA 3-ton split-system air conditioner. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to reject heat from the refrigerant. When this motor fails, the system loses its ability to dissipate heat, causing the compressor to overheat, trip the high-pressure limit, and shut down — leaving you with a no-cool condition, or worse, a failed compressor. Common symptoms include the outdoor unit running briefly then cutting off, a humming sound with no fan movement, or the fan blade spinning freely by hand but failing to start under power.

• Specs: 1/4 HP | 208–230V | Factory-matched RPM and rotation direction | 48-frame | Shaft diameter per OEM specification | Thermally protected
• OEM vs Generic: This OEM motor is wound and balanced to factory tolerances, ensuring correct airflow across the condenser coil. Generic motors frequently differ in rotation direction, shaft diameter, or RPM, leading to reduced efficiency, premature bearing failure, or refrigerant system imbalance.
• Install Difficulty: 3/5 — Requires disconnecting power at the disconnect box and capacitor discharge before removal. Tools needed: 1/4" and 5/16" nut drivers, needle-nose pliers, multimeter, and blade puller. Always photograph wiring and blade pitch before disassembly. Note correct blade pitch direction on reinstall.
• Warranty: 1-year OEM factory warranty against defects. In stock in our warehouse — orders placed before 3 PM ship same business day.

Compatibility: Engineered specifically for the Payne PA1PPA036000ABBA 3-ton split-system condenser. Always verify horsepower, voltage, rotation, and shaft diameter against your unit's data plate before ordering. Our HVAC parts specialists are available to confirm fitment — contact us before you order if you have any questions.
