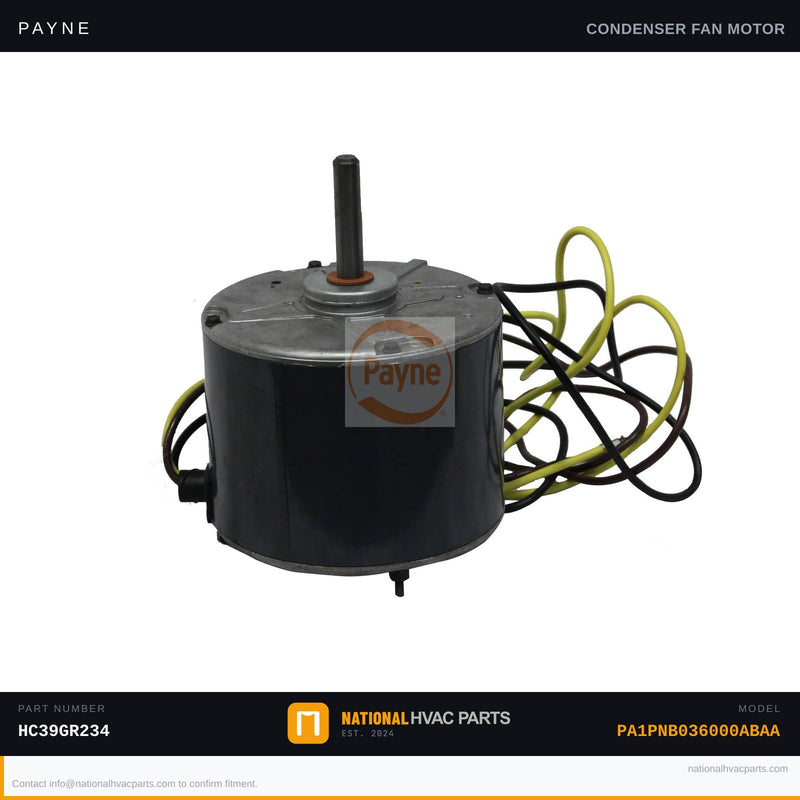

OEM Payne Condenser Fan Motor HC39GR234 for PA1PNB036000ABAA
Payne

OEM Payne Condenser Fan Motor HC39GR234 for PA1PNB036000ABAA

SKU: PAYNE-PA1PNB036000ABAA-FAN_MOTOR-HC39GR234 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor HC39GR234 for Model PA1PNB036000ABAA

This OEM condenser fan motor (part number HC39GR234) is the factory-specified replacement for the Payne PA1PNB036000ABAA split-system air conditioner. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to dissipate heat from the refrigerant. When this motor fails, your system will overheat and trip the high-pressure limit switch, resulting in a no-cool condition, short-cycling, or complete system shutdown. Replacing it with the correct OEM part ensures proper airflow, refrigerant pressure, and system efficiency are fully restored.

  • Specs: OEM Part HC39GR234 | Designed for 3-ton (036) Payne split-system condensers | Factory-matched HP, RPM, rotation direction, and shaft diameter for direct drop-in fitment | 208–230V operation
  • OEM vs Generic: OEM motors are wound and balanced to exact factory tolerances, ensuring correct CFM airflow and long service life. Generic motors often vary in rotation direction, shaft length, and winding resistance — risking premature failure and voided equipment warranties.
  • Install difficulty: 3/5 — Disconnect power and verify capacitor discharge before beginning. Tools needed: 1/4" and 5/16" nut drivers, blade screwdriver, multimeter, and wire connectors. Always photograph existing wiring and blade orientation before removal. Note shaft direction and blade pitch before reinstalling the fan blade.
  • Warranty: 1-year OEM factory warranty included. In-stock units ship same business day from our warehouse when ordered before 3 PM local time.

Compatibility: Engineered specifically for the Payne PA1PNB036000ABAA 3-ton split-system condenser. Always verify HP, RPM, voltage, and rotation direction against your unit's data plate and existing motor label prior to ordering. Our parts specialists are available to confirm fitment — contact us before you order if you have any questions.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA1PNB036000ABAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA1PNB036000ABAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA1PNB036000ABAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
