OEM Payne Transformer 40VA 120V/24V for PA1PNB024000AAAA
Payne

OEM Payne Transformer 40VA 120V/24V for PA1PNB024000AAAA

SKU: PAYNE-PA1PNB024000AAAA-TRANSFORMER-HT01BD209 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

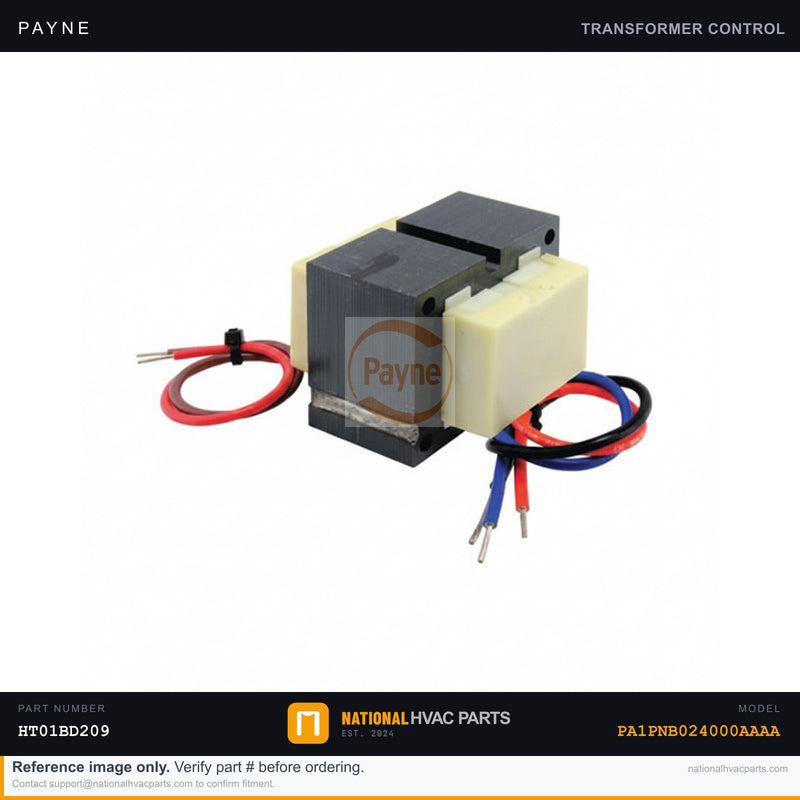

OEM Payne 40VA Control Transformer HT01BD209 for Model PA1PNB024000AAAA

This OEM replacement transformer (part number HT01BD209) is the factory-specified control circuit transformer for the Payne PA1PNB024000AAAA air handler. The transformer steps down line voltage from 120V to 24V AC to power the low-voltage control circuit, including the thermostat, contactor coil, and control board. When this component fails, the entire control circuit goes dark — the thermostat becomes unresponsive, the system refuses to start, and no error codes are generated because there is no power to generate them.

  • Specs: 40VA rating | 120V primary / 24V secondary | Class 2 transformer | Factory-matched OEM part number HT01BD209 | Designed for continuous duty HVAC control applications
  • OEM vs Generic: OEM transformers are wound to exact VA and voltage tolerances for the PA1PNB024000AAAA control circuit. Undersized or off-tolerance generic units can cause nuisance tripping of the internal thermal fuse, intermittent control failures, and premature board damage.
  • Install difficulty: 2/5 — Shut off all power at the disconnect and breaker before servicing. Tools needed: flathead and Phillips screwdrivers, multimeter, wire nuts or spade terminals. Verify 24V output with a meter after installation before restoring full power.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Ships same business day from our stocked warehouse.

Compatibility: Designed for the Payne PA1PNB024000AAAA air handler. Always verify your existing transformer's VA rating and primary/secondary voltages on the unit data plate before ordering. If you are unsure of fitment, our HVAC parts team is available to confirm compatibility before you purchase — same-day shipping on all in-stock orders.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Transformer fit my Payne PA1PNB024000AAAA?
Yes. This is the factory-specified OEM transformer for the Payne PA1PNB024000AAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the transformer on my Payne PA1PNB024000AAAA?
Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Photo wiring connections. Step 3: Disconnect wires from old transformer. Step 4: Remove mounting hardware. Step 5: Install new transformer, reconnect wires matching voltage ratings. Step 6: Verify 24V output with multimeter.
My thermostat has no power. What failed?
Thermostat with no display = failed 24V transformer (or blown control board fuse). Check the 3A/5A fuse on the control board first ($1–$5 fix). If fuse is good but no 24V output from transformer, replace transformer.
Is this transformer compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne transformer?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
