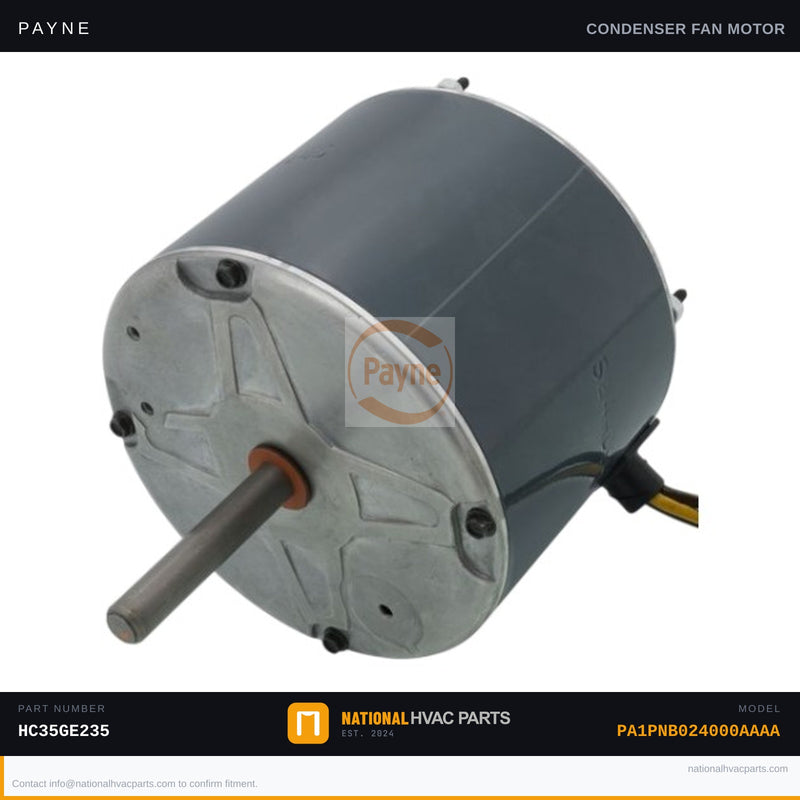

OEM Payne Condenser Fan Motor 1/4 HP for PA1PNB024000AAAA
Payne

OEM Payne Condenser Fan Motor 1/4 HP for PA1PNB024000AAAA

SKU: PAYNE-PA1PNB024000AAAA-FAN_MOTOR-HC35GE235 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor HC35GE235 for Model PA1PNB024000AAAA

This is the factory-specified OEM condenser fan motor (part number HC35GE235) for the Payne PA1PNB024000AAAA split-system air conditioner. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to expel heat from the refrigerant. When this motor fails, the condenser coil overheats, triggering high-pressure lockout, compressor shutdown, or a complete no-cool condition. Common symptoms include a humming outdoor unit with no fan movement, intermittent cooling, or the system shutting off shortly after startup on hot days.

  • Specs: OEM part HC35GE235 | Matched HP, RPM, and rotation direction for PA1PNB024000AAAA | 48-frame | Factory-spec shaft diameter and mounting configuration | Thermally protected for safe, automatic over-temperature shutoff
  • OEM vs Generic: This OEM motor is wound and balanced to exact factory tolerances for the PA1PNB024000AAAA. Generic motors often differ in RPM, rotation, or shaft length, causing airflow imbalance, premature bearing wear, or void of compressor warranty.
  • Install difficulty: 3/5 — Disconnect power and verify zero voltage before beginning. Tools needed: 1/4" and 5/16" nut drivers, multimeter, adjustable wrench, wire nuts. Photograph all wiring and note fan blade pitch and rotation before removal. Capacitor should be tested or replaced at the same time.
  • Warranty: 1-year OEM factory warranty against defects. In-stock units ship same business day from our warehouse when ordered before 3 PM local time.

Compatibility: Designed specifically for the Payne PA1PNB024000AAAA 2-ton split-system condenser. Always verify HP, RPM, voltage, and shaft specifications against your unit's data plate before ordering. Our fitment team is available to confirm compatibility — reach out before you order if you have any questions. Orders placed before 3 PM ship same business day.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA1PNB024000AAAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA1PNB024000AAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA1PNB024000AAAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
