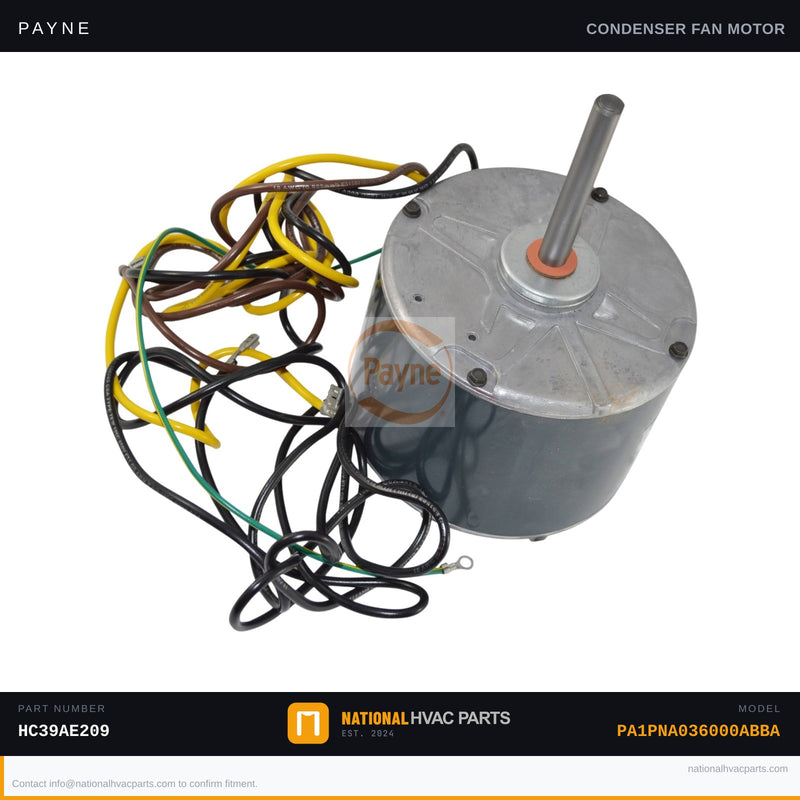

OEM Payne Condenser Fan Motor 1/4 HP for PA1PNA036000ABBA
Payne

OEM Payne Condenser Fan Motor 1/4 HP for PA1PNA036000ABBA

SKU: PAYNE-PA1PNA036000ABBA-FAN_MOTOR-HC39AE209 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor HC39AE209 for Model PA1PNA036000ABBA

This OEM condenser fan motor (part number HC39AE209) is the factory-specified replacement for the Payne PA1PNA036000ABBA 3-ton split-system air conditioner. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to reject heat from the refrigerant. When this motor fails, the condenser coil overheats, triggering high-pressure lockout or causing the compressor to overheat and shut down — resulting in little to no cooling, warm air from supply vents, or the outdoor unit cycling off shortly after startup.

  • Specs: 1/4 HP | 208-230V | Single-phase | Factory-matched RPM and rotation direction | Correct shaft diameter for OEM fan blade fitment | ±5% speed tolerance for optimal airflow across condenser coil
  • OEM vs Generic: This is a genuine OEM Payne motor built to exact factory specifications. Generic motors frequently feature incorrect rotation, mismatched RPM ratings, or undersized shaft diameters that require adapters — all of which reduce efficiency and shorten equipment life. OEM ensures a direct drop-in fit with no modifications.
  • Install Difficulty: 3/5 — Disconnect power at the breaker and capacitor before removing the motor. Tools needed: nut driver set, adjustable wrench, multimeter, and wire nuts. Photograph all wiring connections and blade orientation before disassembly. Note fan blade pitch direction — incorrect reinstallation reverses airflow and can damage the compressor.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Ships same business day from our climate-controlled warehouse.

Compatibility: Designed specifically for the Payne PA1PNA036000ABBA 3-ton split-system condenser. Always confirm motor HP, voltage, RPM, rotation, and shaft diameter against your unit's data plate before ordering. Our HVAC parts specialists are available to verify fitment — just provide your full model and serial number. Order today and your part ships the same business day.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA1PNA036000ABBA?
Yes. This is the factory-specified OEM fan motor for the Payne PA1PNA036000ABBA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA1PNA036000ABBA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
