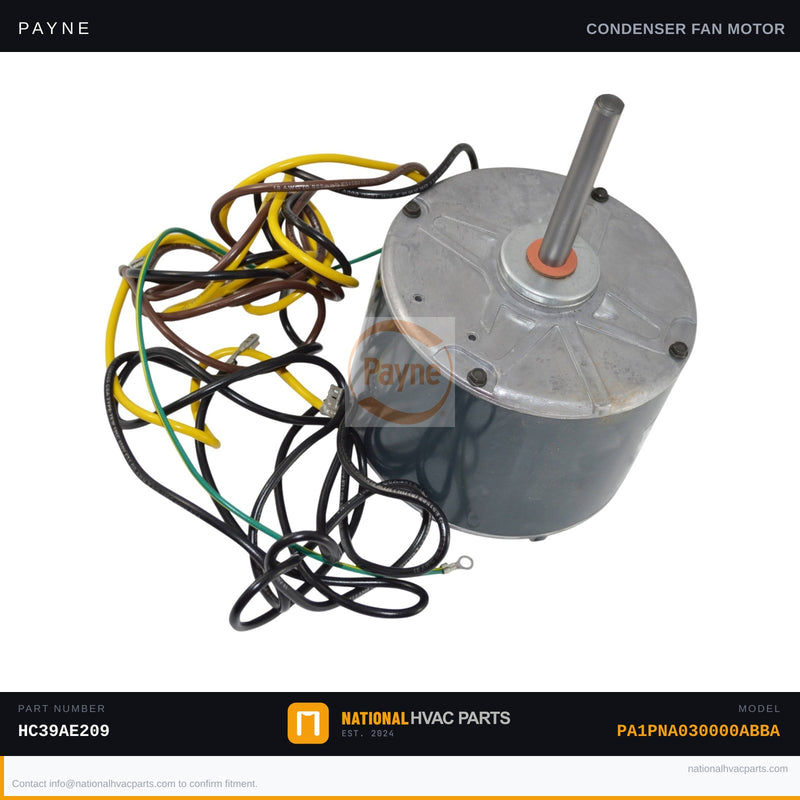

OEM Payne Condenser Fan Motor 1/4HP for PA1PNA030000ABBA
Payne

OEM Payne Condenser Fan Motor 1/4HP for PA1PNA030000ABBA

SKU: PAYNE-PA1PNA030000ABBA-FAN_MOTOR-HC39AE209 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor HC39AE209 for Model PA1PNA030000ABBA

This OEM condenser fan motor (part number HC39AE209) is the factory-specified replacement for the Payne PA1PNA030000ABBA split-system air conditioner. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to dissipate heat from the refrigerant. When this motor fails, the condenser coil overheats, refrigerant pressure spikes, and the system trips on high-pressure lockout — leaving you with no cooling. Common failure symptoms include a humming outdoor unit with no fan movement, intermittent shutdowns on hot days, or a completely seized motor that trips the breaker.

  • Specs: OEM part HC39AE209 | Designed for Payne PA1PNA030000ABBA | Factory-matched HP, RPM, rotation direction, and shaft diameter — verify your unit's data plate before ordering
  • OEM vs Generic: This OEM motor meets exact factory winding specifications, bearing grade, and thermal overload ratings. Generic motors often use lower-grade bearings and looser electrical tolerances, leading to premature failure — especially under heavy summer load cycles.
  • Install difficulty: 3/5 — Disconnect power and confirm capacitor is discharged before starting. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter, and wire strippers. Note blade pitch orientation and wire colors before disconnecting. The run capacitor may also need replacement if the motor has been running in a degraded state.
  • Warranty: 1-year OEM factory warranty. In-stock units ship same business day from our warehouse when ordered before 3 PM local time.

Compatibility: This motor is engineered specifically for the Payne PA1PNA030000ABBA condensing unit. Always cross-reference the HP, RPM, voltage, and shaft diameter on your existing motor's nameplate against this listing to confirm fitment. Need help verifying compatibility? Our HVAC parts specialists confirm fitment before you order — no guesswork, no return shipping hassles.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA1PNA030000ABBA?
Yes. This is the factory-specified OEM fan motor for the Payne PA1PNA030000ABBA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA1PNA030000ABBA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
