OEM Payne Control Transformer 40VA for Model PA1HEA120000ABAA

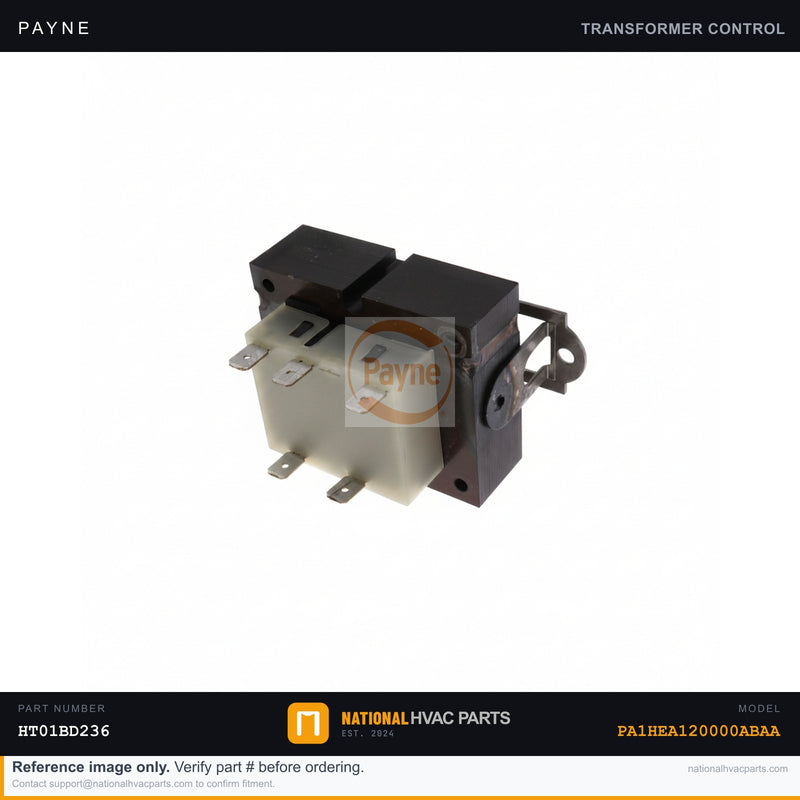

This OEM replacement transformer (part number HT01BD236) is the factory-specified control circuit transformer for the Payne PA1HEA120000ABAA air handler. The transformer steps line voltage (120V or 240V primary) down to the 24V AC signal that powers your thermostat, control board, contactors, and zone valves. When this component fails, the entire control circuit goes dark — the thermostat display may go blank, the system will not respond to any calls for heating or cooling, and no safety controls will function. A failed transformer is one of the most common reasons a technician finds "nothing works" during a service call.

• Specs: 40VA rating | 120/240V primary | 24V secondary output | Factory-matched OEM part number HT01BD236 | Spade or wire-lead terminations
• OEM vs Generic: The OEM Payne transformer is wound to exact VA and voltage tolerances required by the PA1HEA120000ABAA control board. Undersized or off-tolerance generic transformers can cause erratic board behavior, nuisance tripping of the 3A control fuse, or premature board failure — making OEM the only recommended choice for this application.
• Install difficulty: 2/5 — Disconnect all power before beginning. Tools needed: flathead and Phillips screwdrivers, needle-nose pliers, multimeter (verify 24V output after install). Photograph or label all low-voltage wiring connections before removing the old transformer. Installation typically takes 20–30 minutes.
• Warranty: 1-year OEM factory warranty against defects. In-stock units ship same business day when ordered before 3 PM local time.

Compatibility: This transformer is the direct OEM replacement for the Payne PA1HEA120000ABAA air handler. Always verify your existing transformer's VA rating and primary voltage on the unit data plate or wiring diagram before ordering to ensure a proper match. Our parts specialists are available to confirm fitment — contact us before you order if you have any questions.
