OEM Payne Transformer 40VA 120V-24V for PA1HEA120000AAAA
Payne

OEM Payne Transformer 40VA 120V-24V for PA1HEA120000AAAA

SKU: PAYNE-PA1HEA120000AAAA-TRANSFORMER-HT01BD236 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

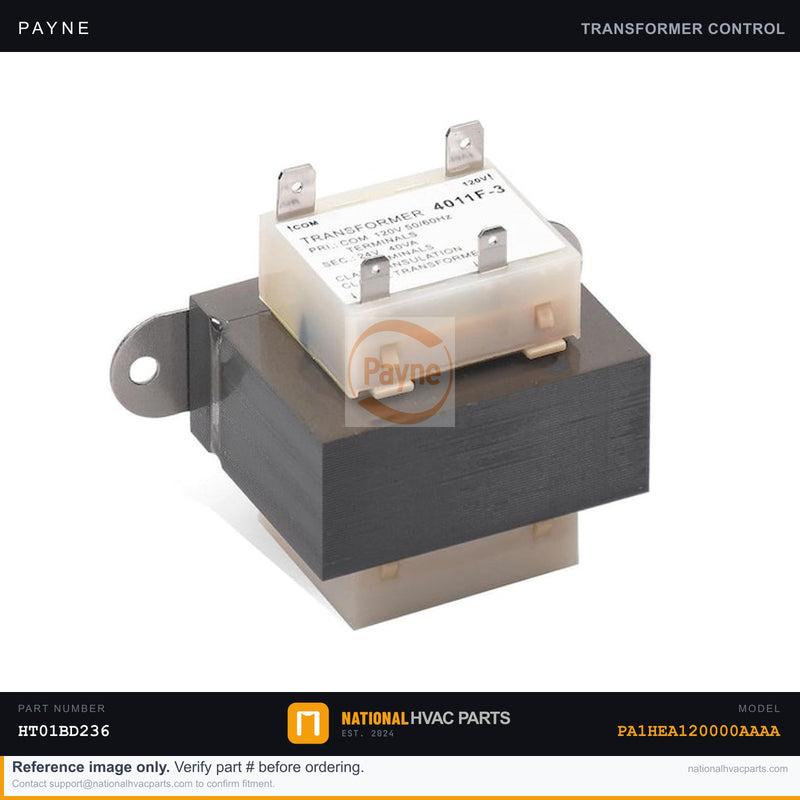

OEM Payne Transformer 40VA 120V–24V for Model PA1HEA120000AAAA

This OEM replacement transformer (part number HT01BD236) is the factory-specified control circuit transformer for the Payne PA1HEA120000AAAA air handler. The transformer steps down 120V line voltage to the 24V signal voltage that powers your thermostat, control board, and all low-voltage switching components. When the transformer fails, nothing in the system responds — the thermostat goes dark, the air handler won't energize, and no heating or cooling call is answered. If you've already ruled out a blown fuse or tripped breaker, a failed transformer is the most common cause of complete low-voltage control loss.

  • Specs: 40VA rating | 120V primary / 24V secondary | Class 2 control circuit transformer | OEM part number HT01BD236 | Factory-matched output tolerance for stable 24V signal
  • OEM vs Generic: This is a genuine OEM Payne transformer, wound and rated to exact factory specifications. Generic transformers frequently run under-rated VA loads, causing premature overheating, nuisance fuse failures, and shortened control board life. OEM is the only safe choice for a system this dependent on clean, stable low voltage.
  • Install difficulty: 2/5 — Shut off all power at the disconnect and breaker before beginning. Tools needed: flathead and Phillips screwdrivers, wire stripper, multimeter to verify 24V output after install. Label and photograph all wiring connections before removal. Check for a shorted low-voltage wire that may have caused the original failure before powering up.
  • Warranty: 1-year OEM factory warranty against defects. In-stock and ships same business day from our warehouse when ordered before cutoff.

Compatibility: Designed for the Payne PA1HEA120000AAAA air handler. Always verify your existing transformer's VA rating and primary/secondary voltages on the unit data plate before ordering to confirm fitment. Have a question about whether this part fits your unit? Our HVAC parts specialists verify fitment before you buy — reach out before placing your order.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Transformer fit my Payne PA1HEA120000AAAA?
Yes. This is the factory-specified OEM transformer for the Payne PA1HEA120000AAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the transformer on my Payne PA1HEA120000AAAA?
Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Photo wiring connections. Step 3: Disconnect wires from old transformer. Step 4: Remove mounting hardware. Step 5: Install new transformer, reconnect wires matching voltage ratings. Step 6: Verify 24V output with multimeter.
My thermostat has no power. What failed?
Thermostat with no display = failed 24V transformer (or blown control board fuse). Check the 3A/5A fuse on the control board first ($1–$5 fix). If fuse is good but no 24V output from transformer, replace transformer.
Is this transformer compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne transformer?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
