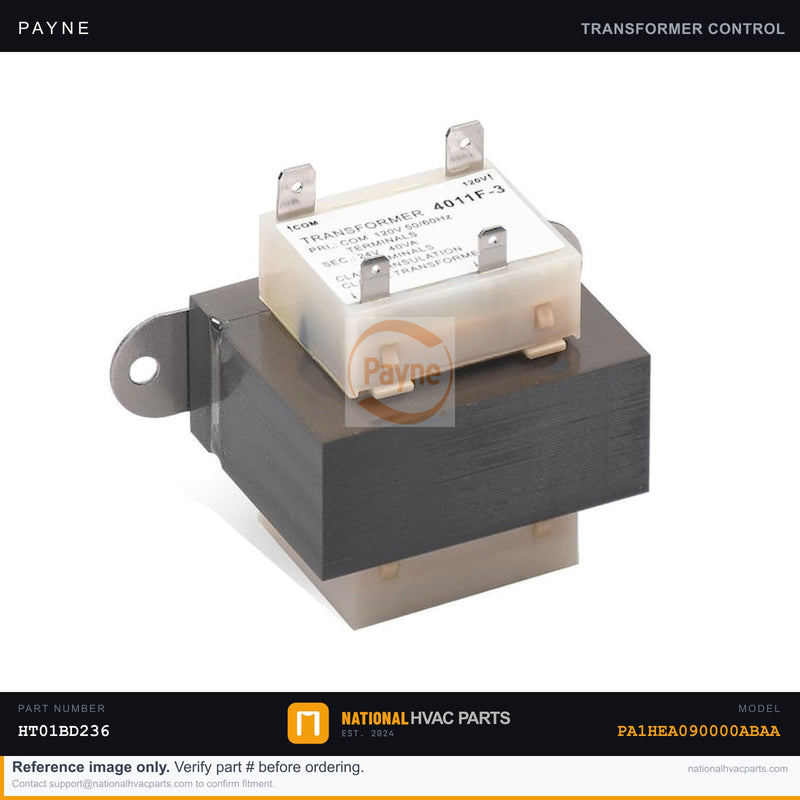

OEM Payne 40VA Control Transformer HT01BD236 for Model PA1HEA090000ABAA

This is the OEM factory replacement control transformer (part number HT01BD236) for the Payne PA1HEA090000ABAA air handler. The transformer steps down 120V line voltage to the 24V AC signal that powers your thermostat, control board, and all low-voltage safety circuits. When this part fails, the entire control circuit goes dead — your thermostat goes blank, the system won't respond to any commands, and no heating or cooling functions can be initiated. A failed transformer is one of the most commonly misdiagnosed HVAC faults, often mistaken for a bad control board or thermostat.

• Specs: 40VA rating | 120V primary / 24V secondary | Toroidal or EI-core construction | Factory-matched output for Payne control circuits | OEM part number HT01BD236
• OEM vs Generic: This OEM transformer is wound to exact factory VA and voltage tolerances, ensuring stable 24V output under full control circuit load. Generic transformers often exhibit voltage sag under load, causing erratic board behavior, nuisance lockouts, or premature contactor failure.
• Install difficulty: 2/5 — Disconnect power at the breaker and verify zero voltage with a multimeter before touching any wiring. Tools needed: flathead and Phillips screwdrivers, multimeter, wire nuts or spade connectors. Label all low-voltage wiring before disconnecting from the old transformer.
• Warranty: 1-year OEM factory warranty. In-stock and ships same business day from our warehouse.

Compatibility: Designed specifically for the Payne PA1HEA090000ABAA air handler. Verify your unit's data plate confirms 120V primary and 24V/40VA secondary requirement before ordering. If you're unsure of fitment, our HVAC parts specialists are available to confirm compatibility before you purchase — ships today when ordered before 3PM local time.
