OEM Payne Condenser Fan Motor 1/4-1/2HP for PA17NA02400GBAAA
Payne

OEM Payne Condenser Fan Motor 1/4-1/2HP for PA17NA02400GBAAA

SKU: PAYNE-PA17NA02400GBAAA-FAN_MOTOR-HC33GE238 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

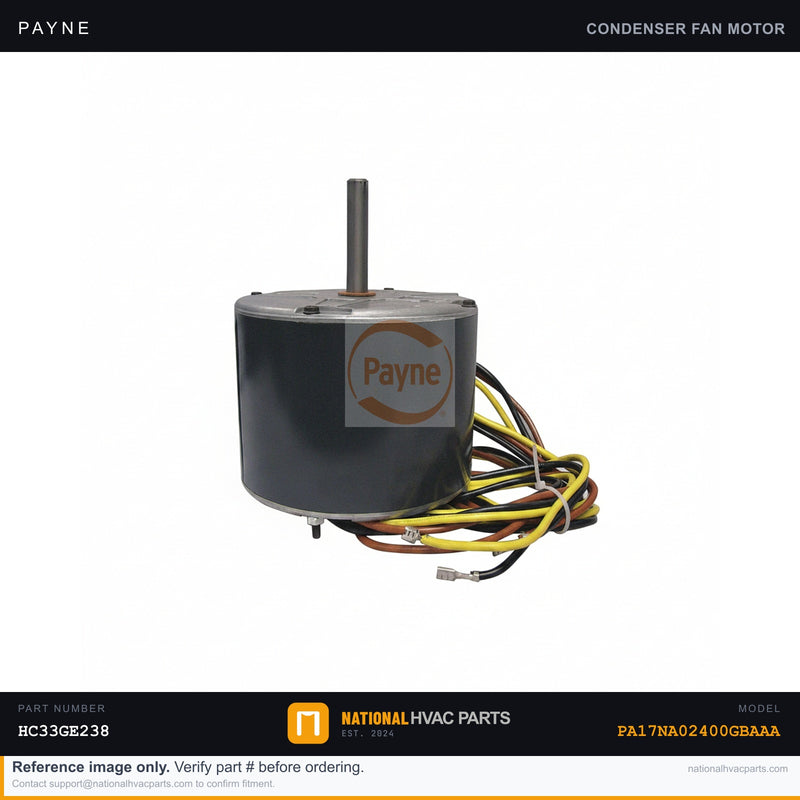

OEM Payne Condenser Fan Motor HC33GE238 for Model PA17NA02400GBAAA

This OEM condenser fan motor (part number HC33GE238) is the factory-specified replacement for the Payne PA17NA02400GBAAA split-system air conditioner. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, dissipating heat from the refrigerant. When this motor fails, the condenser coil overheats, triggering high-pressure lockout or compressor thermal cutoff — leaving you with a system that runs briefly then shuts down, or won't cool at all.

  • Specs: OEM-matched HP (1/4–1/2HP range) | Factory-correct RPM and rotation direction | Proper shaft diameter for OEM fan blade | 440V capacitor-run design with built-in thermal overload protection
  • OEM vs Generic: This is a genuine OEM motor wound to exact factory tolerances for the PA17NA02400GBAAA. Generic motors frequently deviate in RPM, rotation, and shaft length, causing vibration, noise, reduced airflow, and shortened compressor life due to inadequate heat rejection.
  • Install difficulty: 3/5 — Disconnect power and discharge any capacitors before beginning. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter, and blade puller (recommended). Photograph all wiring and blade orientation before disassembly. Confirm rotation direction and capacitor MFD rating match the original motor's data label.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Ships same business day from our stocked warehouse.

Compatibility: Designed specifically for the Payne PA17NA02400GBAAA 2-ton split-system condenser. Always verify HP, RPM, shaft diameter, and rotation direction on your existing motor's data plate before ordering. Our HVAC parts specialists are available to confirm fitment — contact us before you order if you have any questions. In stock and ships today.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA17NA02400GBAAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA17NA02400GBAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA17NA02400GBAAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
