OEM Payne Condenser Fan Motor 1/4-1/2 HP for PA15NC04200GAAAA
Payne

OEM Payne Condenser Fan Motor 1/4-1/2 HP for PA15NC04200GAAAA

SKU: PAYNE-PA15NC04200GAAAA-FAN_MOTOR-HB39GQ230 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

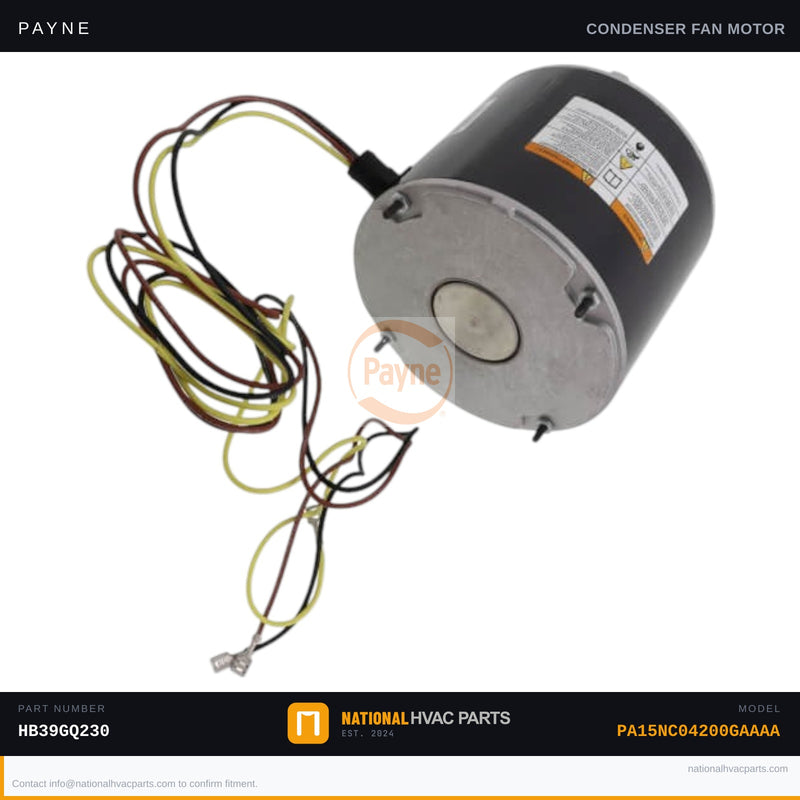

OEM Payne Condenser Fan Motor for Model PA15NC04200GAAAA

This is the factory-specified OEM condenser fan motor (part number HB39GQ230) for the Payne PA15NC04200GAAAA split-system air conditioner. The condenser fan motor drives the outdoor fan blade to expel heat absorbed by the refrigerant across the condenser coil. When this motor fails, the condenser unit may run briefly before tripping on high-pressure lockout, or the outdoor fan may stop spinning entirely — causing the system to overheat, short-cycle, or fail to cool altogether. Replacing it with the correct OEM unit ensures your system returns to factory efficiency and reliability.

  • Specs: OEM Part No. HB39GQ230 | Horsepower: matched to PA15NC04200GAAAA factory spec (1/4–1/2 HP range) | Voltage: 208–230V single-phase | Rotation and shaft diameter factory-matched | Permanent Split Capacitor (PSC) motor design
  • OEM vs Generic: OEM motors are wound and balanced to exact factory specifications, ensuring correct RPM, rotation direction, and shaft dimensions. Generic motors may list approximate specs but often introduce vibration, premature bearing wear, or mismatched airflow that reduces system efficiency and lifespan.
  • Install Difficulty: 3/5 — Disconnect and lock out power before starting. Tools needed: 1/4" and 5/16" nut drivers, wire stripper, multimeter, and blade puller (recommended). Photograph all wiring and blade orientation before disassembly. Ensure fan blade depth and rotation direction match the original motor before securing.
  • Warranty: 1-year OEM factory warranty against defects. Orders placed by 3 PM local time ship same business day from our climate-controlled warehouse.

Compatibility: Designed specifically for the Payne PA15NC04200GAAAA split-system condenser. Always verify horsepower, voltage, RPM, rotation, and shaft diameter against your unit's data plate before installation. Our parts specialists are available to confirm fitment — contact us before ordering if you have any questions. In stock and ready to ship today.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA15NC04200GAAAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA15NC04200GAAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA15NC04200GAAAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
