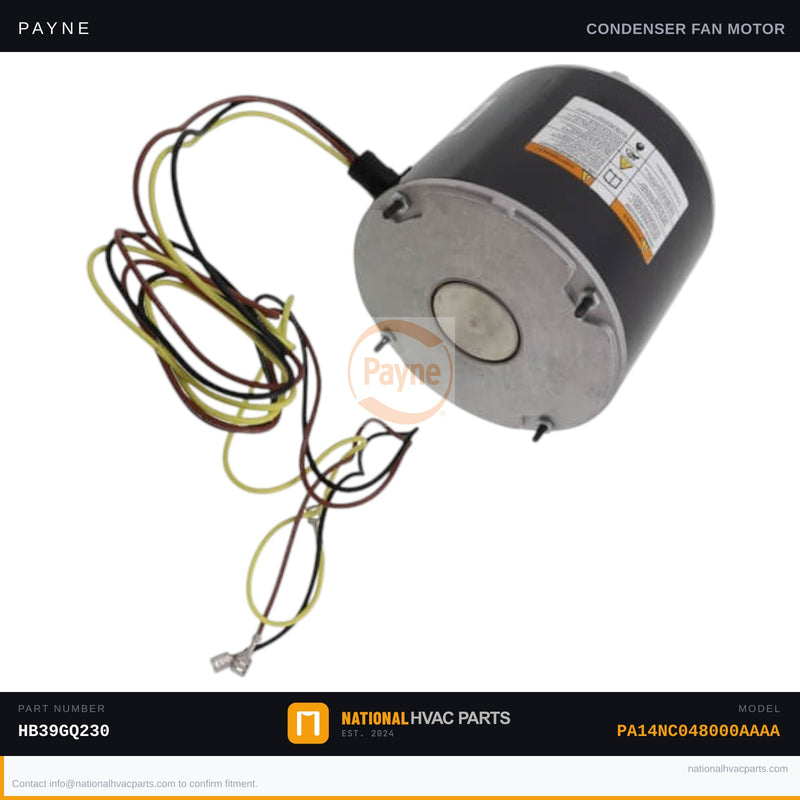

OEM Payne Condenser Fan Motor (HB39GQ230) for Model PA14NC048000AAAA

This is the factory OEM condenser fan motor for the Payne PA14NC048000AAAA 4-ton split-system air conditioner. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to dissipate heat and maintain proper refrigerant pressure. When this motor fails, the compressor overheats, high-pressure safeties trip, and the system shuts down — leaving you with no cooling. Common symptoms include a humming outdoor unit with no fan spin, intermittent shutdowns on hot days, or a seized motor that trips the breaker.

• Specs: OEM Part HB39GQ230 | Designed for 4-ton (048) capacity | Factory-matched HP, RPM, rotation direction, and shaft diameter for the PA14NC048000AAAA | 208/230V single-phase operation
• OEM vs Generic: This OEM motor is wound and balanced to Payne's exact factory specifications. Generic motors frequently ship with incorrect rotation direction, mismatched shaft diameters, or off-spec RPM ratings that reduce efficiency, increase noise, and shorten compressor life due to improper airflow.
• Install Difficulty: 3/5 — Disconnect power at the breaker and disconnect box before beginning. Tools needed: 1/4" and 5/16" nut drivers, wire strippers, multimeter, and blade puller (recommended). Photograph all wiring and note fan blade orientation before removal. Ensure blade pitch and rotation direction match the original motor before powering on.
• Warranty: 1-year OEM factory warranty against defects. Orders placed before 3PM EST ship same business day from our climate-controlled parts warehouse.

Compatibility: Engineered specifically for the Payne PA14NC048000AAAA 4-ton R-410A split-system condenser. Always verify horsepower, RPM, shaft diameter, and rotation direction against your unit's data plate before installation. Not sure it fits? Our HVAC parts specialists verify fitment at no charge — contact us before ordering.
