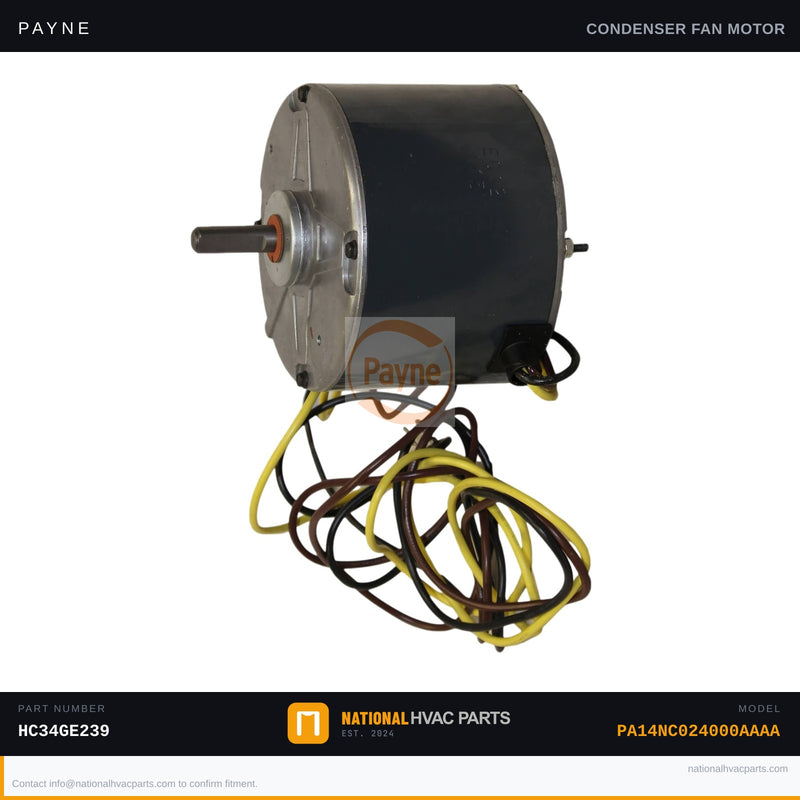

OEM Payne Condenser Fan Motor for Model PA14NC024000AAAA

This is the factory-specified OEM condenser fan motor for the Payne PA14NC024000AAAA single-stage split-system air conditioner. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to expel heat from the refrigerant. When this motor fails, the condenser coil overheats, triggering the high-pressure limit switch and causing the system to shut down — leaving your home without cooling. Common symptoms include a condenser unit that hums but the outdoor fan blade won't spin, an overheating compressor, or a system that trips the high-pressure cutout repeatedly.

• Specs: OEM Part Numbers HC34GE239 / HB32GR234 | 1/4 HP | 208–230V single-phase | Factory-matched RPM, rotation direction, and 1/2" shaft diameter for direct fit on PA14NC024000AAAA
• OEM vs Generic: OEM motors are wound and balanced to exact factory specifications, ensuring correct CFM airflow across the condenser coil. Generic replacements frequently deviate in RPM or rotation direction, risking refrigerant system imbalance and premature compressor failure.
• Install Difficulty: 3/5 — Requires disconnecting power at the disconnect box and removing the condenser fan guard. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter, and wire connectors. Always photograph existing wiring and note fan blade pitch orientation before removal. Capacitor should be discharged before servicing.
• Warranty: 1-year OEM factory warranty on parts. Orders placed by 3 PM local time ship same business day from our stocked warehouse.

Compatibility: Engineered specifically for the Payne PA14NC024000AAAA 2-ton 14 SEER R-410A split-system condenser. Cross-references OEM part numbers HC34GE239 and HB32GR234. Always verify HP, voltage, RPM, and shaft diameter against your unit's data plate before ordering. Our fitment team is available to confirm compatibility — contact us before you buy if you have any questions.
