OEM Payne Dual Run & Start Capacitor Kit for PA13NR03600GAAAA
Payne

OEM Payne Dual Run & Start Capacitor Kit for PA13NR03600GAAAA

SKU: PAYNE-PA13NR03600GAAAA-CAPACITOR-P291-5073RS Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Dual Run & Start Capacitor Kit for Model PA13NR03600GAAAA

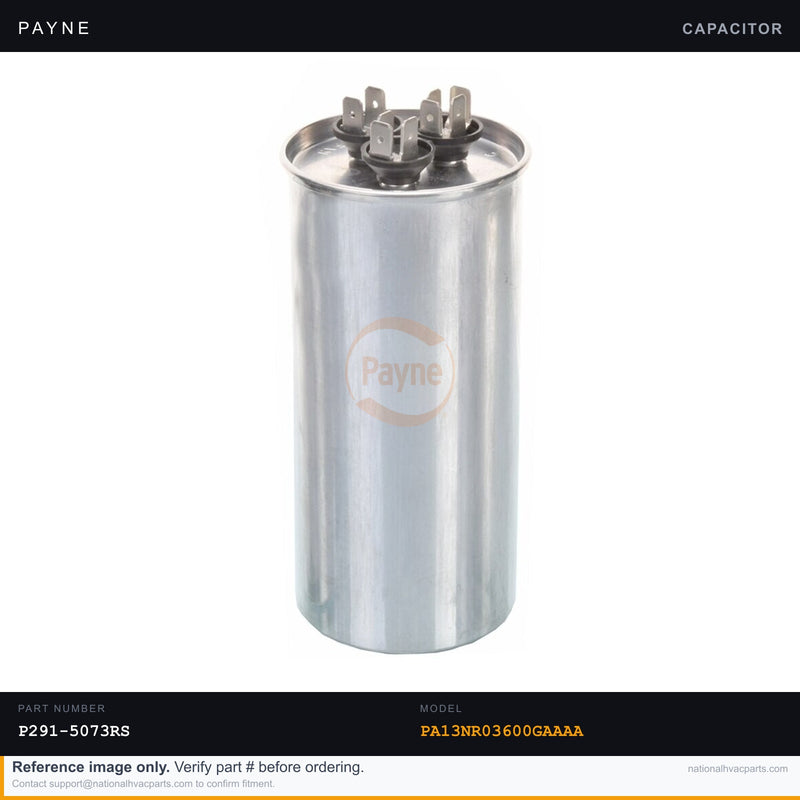

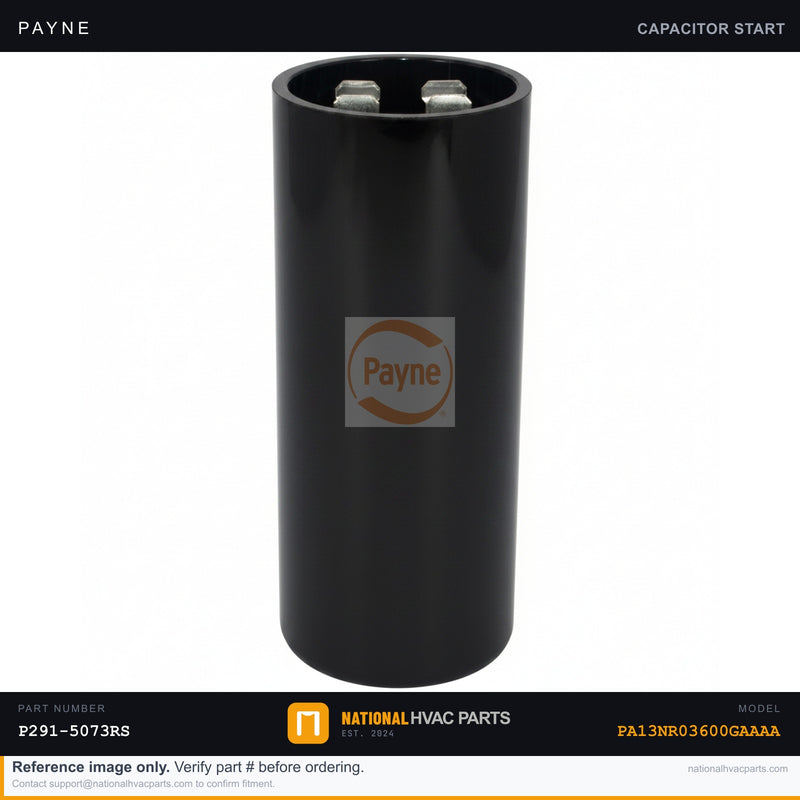

This OEM capacitor kit includes both the dual run capacitor (P291-5073RS) and the start capacitor (P281-8806) factory-specified for the Payne PA13NR03600GAAAA single-stage split-system air conditioner. The dual run capacitor keeps the compressor and condenser fan motor running efficiently, while the start capacitor provides the extra torque burst needed to bring the compressor up to speed on each call for cooling. When either component fails, symptoms include a loud humming with no motor movement, a compressor that trips on thermal overload, or a system that short-cycles within the first few minutes of operation — leaving your home warm and your utility bill climbing.

  • Specs: Dual Run Capacitor (P291-5073RS) — round case, 370V/440V rated, ±5% MFD tolerance, factory-matched for compressor and condenser fan motor; Start Capacitor (P281-8806) — high-capacitance boost design, rated for repeated start cycles, matched to PA13NR03600GAAAA compressor load requirements.
  • OEM vs Generic: OEM capacitors from Payne (an ICP/Carrier family brand) are manufactured to exact factory tolerances. Generic alternatives frequently run ±10% MFD deviation, which stresses compressor windings over time, shortens motor life, and can void your equipment warranty.
  • Install Difficulty: 2/5 — Always disconnect power and discharge the capacitor fully before handling. Tools needed: 1/4" nut driver, insulated needle-nose pliers, multimeter with capacitance setting. Photograph all wiring connections before removal. The start capacitor is typically wired in parallel with the compressor run terminal.
  • Warranty & Shipping: Backed by a 1-year OEM factory warranty against defects. Orders placed by 3 PM local time ship same business day from our climate-controlled warehouse.

Compatibility: This kit is engineered specifically for the Payne PA13NR03600GAAAA 3-ton, 13 SEER R-410A split-system condenser. Always verify the MFD and voltage ratings printed on your existing capacitors against the data plate inside the unit's electrical panel before ordering. Not sure if this is the right fit? Our HVAC parts specialists verify fitment before you buy — contact us anytime.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Capacitor fit my Payne PA13NR03600GAAAA?
Yes. This is the factory-specified OEM capacitor for the Payne PA13NR03600GAAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the capacitor on my Payne PA13NR03600GAAAA?
Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.
My AC hums but won’t start. What part do I need?
An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).
Is this capacitor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne capacitor?
OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
