OEM Payne Condenser Fan Motor 1/4 HP for PA13NR03000GBLAA
Payne

OEM Payne Condenser Fan Motor 1/4 HP for PA13NR03000GBLAA

SKU: PAYNE-PA13NR03000GBLAA-FAN_MOTOR-HC34GE239 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

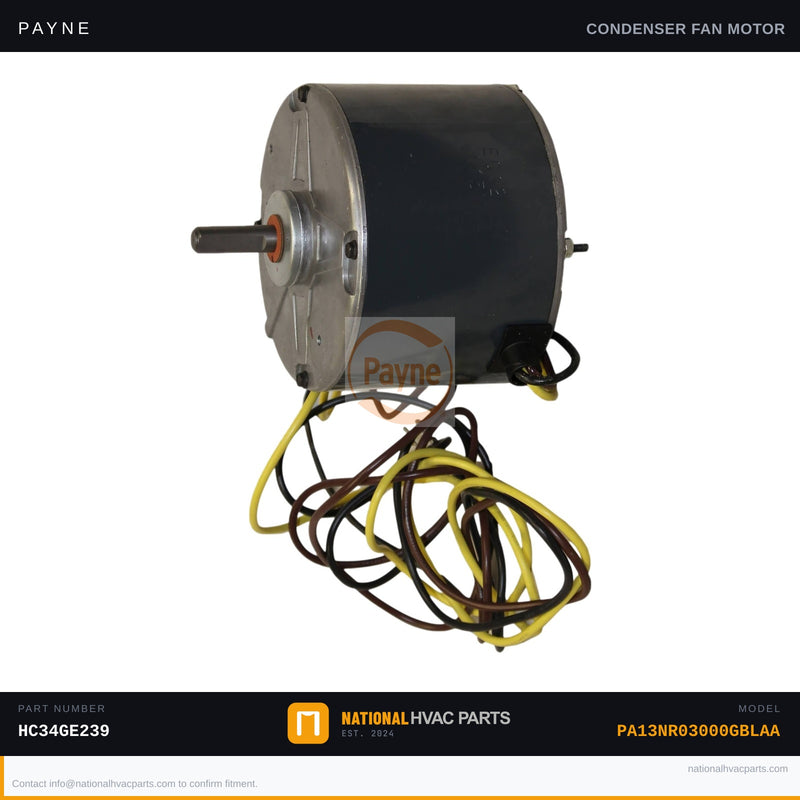

OEM Payne Condenser Fan Motor for Model PA13NR03000GBLAA

This OEM condenser fan motor is the factory-specified replacement for the Payne PA13NR03000GBLAA split-system air conditioner. The condenser fan motor drives the outdoor fan blade to expel heat from the refrigerant passing through the condenser coil. When this motor fails, the unit will overheat, trigger high-pressure lockout, or simply blow warm air — leaving your home uncomfortable and your compressor at risk of costly secondary damage. OEM part numbers HC34GE239 and HB33GQ230 are both factory-authorized replacements for this application.

  • Specs: 1/4 HP | 208–230V | Single-phase | Permanently split capacitor (PSC) design | Factory-matched rotation direction, RPM, and 1/2" shaft diameter for direct bolt-in fit
  • OEM vs Generic: OEM motors are wound to exact factory tolerances for amperage draw and thermal protection thresholds. Generic motors frequently run hotter, draw excess current, and can void equipment warranties — choose OEM for long-term reliability.
  • Install Difficulty: 3/5 — Requires disconnecting power at the disconnect box and capacitor discharge before removal. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter, and needle-nose pliers. Photograph all wiring connections and blade pitch orientation before disassembly. Reuse the existing run capacitor only if it tests within spec.
  • Warranty: 1-year OEM factory warranty. Orders placed before cutoff ship same business day from our climate-controlled warehouse.

Compatibility: Designed for the Payne PA13NR03000GBLAA 13 SEER R-410A split-system condenser. Always verify horsepower, voltage, rotation, and shaft diameter against your unit's data plate before ordering. Our parts specialists are available to confirm fitment — reach out before you buy for complete peace of mind. In stock and ready to ship today.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA13NR03000GBLAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA13NR03000GBLAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA13NR03000GBLAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
