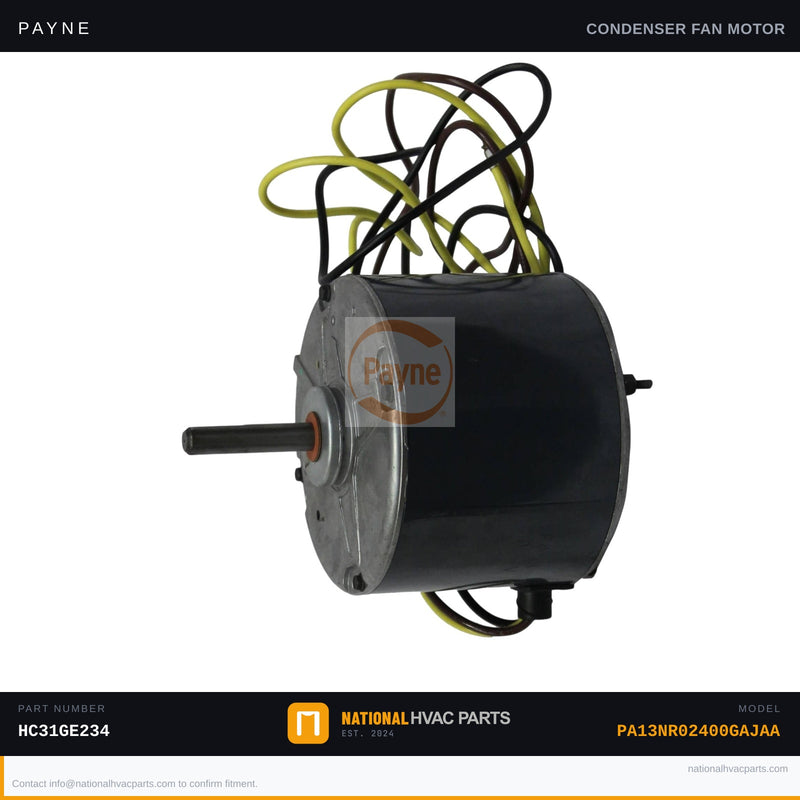

OEM Payne Condenser Fan Motor HC31GE234 for PA13NR02400GAJAA
Payne

OEM Payne Condenser Fan Motor HC31GE234 for PA13NR02400GAJAA

SKU: PAYNE-PA13NR02400GAJAA-FAN_MOTOR-HC31GE234 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor HC31GE234 for Model PA13NR02400GAJAA

This OEM condenser fan motor (part number HC31GE234) is the factory-specified replacement for the Payne PA13NR02400GAJAA split-system air conditioner. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, expelling heat absorbed from your home. When this motor fails, the condenser coil overheats, causing the compressor to trip on high-pressure lockout or shut down entirely — leaving you with no cooling and potential long-term compressor damage if left unaddressed.

  • Specs: OEM-matched horsepower (1/4–1/3 HP range) | Factory-correct RPM and rotation direction | Proper shaft diameter for PA13NR02400GAJAA fan blade | 440V capacitor-rated windings | Permanently lubricated bearings for long service life
  • OEM vs Generic: This OEM motor is wound and balanced to Payne's exact factory specifications, ensuring correct airflow, amperage draw, and thermal protection. Generic motors frequently ship with mismatched RPM or rotation, reducing efficiency and risking premature compressor failure.
  • Install Difficulty: 3/5 — Disconnect power at the disconnect box and breaker before opening the unit. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, needle-nose pliers, multimeter. Photograph all wiring and note fan blade orientation (top or bottom of motor shaft) before removal. Verify rotation direction matches original unit label.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Orders ship same business day from our stocked warehouse.

Compatibility: Designed specifically for the Payne PA13NR02400GAJAA 2-ton, 13 SEER R-410A split-system condenser. Always verify horsepower, RPM, rotation, and shaft diameter against your unit's data plate and existing motor label before finalizing your order. Our fitment team is available to confirm compatibility — order with confidence and get your system back online fast.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA13NR02400GAJAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA13NR02400GAJAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA13NR02400GAJAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
