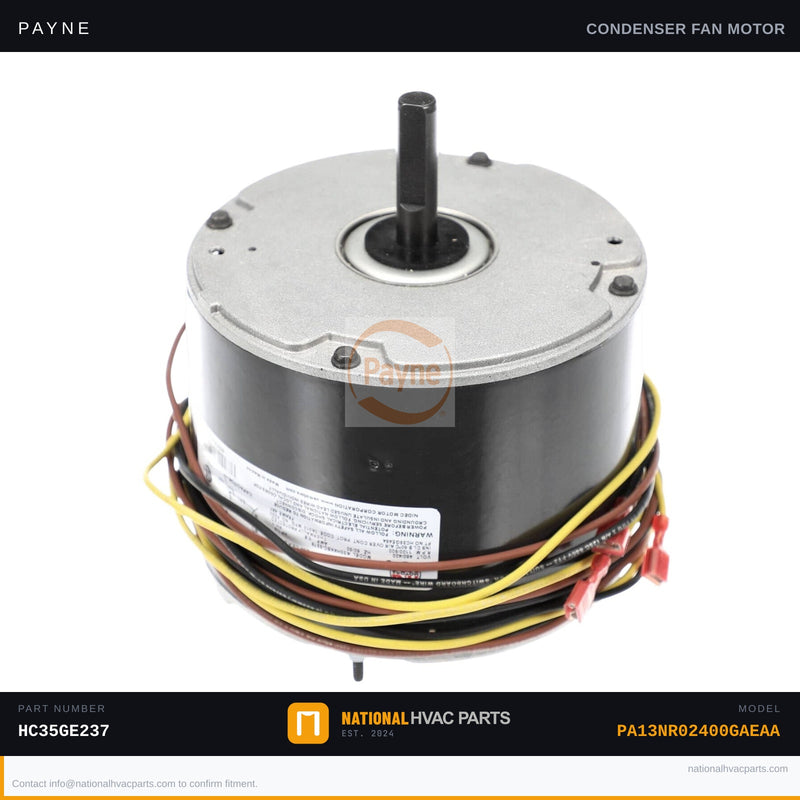

OEM Payne Condenser Fan Motor 1/4 HP for PA13NR02400GAEAA
Payne

OEM Payne Condenser Fan Motor 1/4 HP for PA13NR02400GAEAA

SKU: PAYNE-PA13NR02400GAEAA-FAN_MOTOR-HC35GE237 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor for Model PA13NR02400GAEAA

This is the factory-specified OEM condenser fan motor for the Payne PA13NR02400GAEAA split-system air conditioner. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, rejecting heat absorbed from your home. When this motor fails, the outdoor unit overheats, triggers high-pressure lockout, or stops cooling entirely — often within minutes of startup. Replacing with an OEM-matched motor ensures proper airflow, correct rotation, and full system efficiency.

  • Specs: Replaces OEM part numbers HC35GE237 and HC38GE231 | Typical rating: 1/4–1/3 HP | 208–230V single-phase | Correct RPM and rotation direction factory-matched to Payne PA13NR02400GAEAA | Verify shaft diameter and mounting configuration on your data plate before ordering
  • OEM vs Generic: OEM motors from Carrier/Payne are wound to exact torque and RPM specifications. Aftermarket motors frequently deviate in rotation direction, shaft length, or capacitor requirement — leading to premature failure or voided equipment warranties.
  • Install difficulty: 3/5 — Requires disconnecting power at the disconnect box and control board. Tools needed: nut driver set, adjustable wrench, wire stripper, multimeter, and capacitor discharge tool. Always photograph wiring and blade orientation before disassembly. Match shaft diameter to existing fan blade hub.
  • Warranty: 1-year OEM factory warranty against defects. Orders received before 3 PM EST ship same business day from our stocked warehouse.

Compatibility: Designed for the Payne PA13NR02400GAEAA 2-ton, single-stage R-410A split-system condenser. Cross-references OEM part numbers HC35GE237 and HC38GE231. Confirm motor HP, voltage, RPM, and shaft specifications against your unit's data plate prior to ordering. Our technical team is available to verify fitment — contact us before you buy.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA13NR02400GAEAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA13NR02400GAEAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA13NR02400GAEAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
